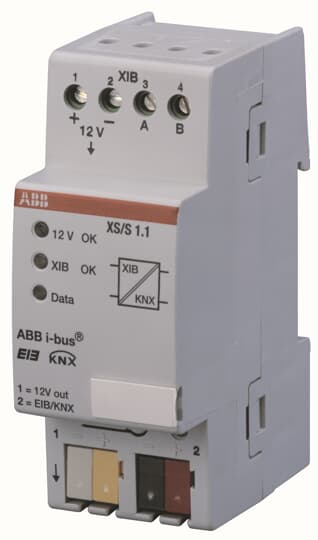

Article: XS/S1.1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | XS/S1.1 |
| Product ID: | 2CDG110075R0011 |
| EAN: | 4016779667043 |
| Catalog Description: | XS/S1.1 Interface for Alarm Panel, MDRC |
| Long Description: | KNX Interface to Alarm Panel L240 |
| |
| Product Name: | Alarm System - L240 |
| Input Voltage (Uin): | 24 V DC |
| Power Loss: | 0.7 W |
| Number of Outputs: | 0 |
| Number of LEDs: | 3 |
| Number of Digital Inputs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Software Updateable: | No |
| Integrated Webserver: | No |
| Manual Operation: | No |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 2 |
| Product Net Width: | 36 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.09 kg |
| |
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 41 mm |
| Package Level 1 Gross Weight: | 0.11 kg |
| Package Level 1 EAN: | 4016779667043 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK513010D2701 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001099 - System interface/media gateway for bus system |
| ETIM 7: | EC001099 - System interface/media gateway for bus system |
| ETIM 8: | EC001099 - System interface/media gateway for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Logic items / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8538 90 91 |
| UNSPSC: | 43222605 |
| eClass: | V11.0 : 27143136 |
| IDEA Granular Category Code (IGCC): | 6809 >> System interface/media gateway for bus system |
| Object Classification Code: | A |
