Article: CL-LAS.TK001
Article: CL-LAS.TK001

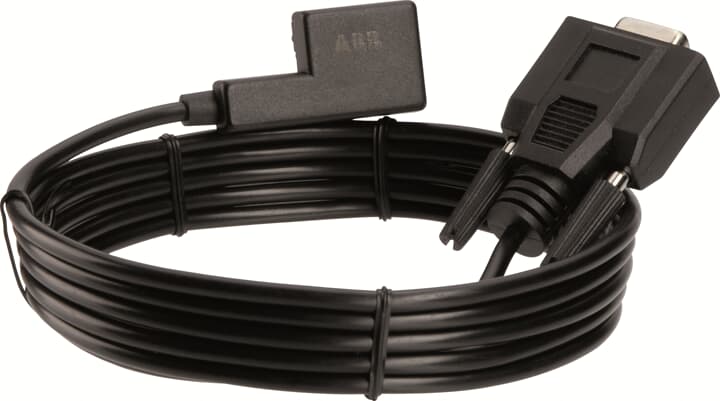

CL-LAS.TK001 Connecting cable, serial for connection with logic relay
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CL-LAS.TK001 |
| Product ID: | 1SVR440799R6000 |
| EAN: | 4013614389788 |
| Catalog Description: | CL-LAS.TK001 Connecting cable, serial for connection with logic relay |
| Long Description: | The CL-LAS.TK001 is a connecting cable from the CL range. It can be used for programming logic relays and has a serial interface to connect a PC and a logic relay. The connection cable has a length of 2 m. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85444290 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_05 |
| Instructions and Manuals: | 2CDC110004C0209 |
| |
| Product Net Width: | 2 mm |
| Product Net Depth / Length: | 2000 mm |
| Product Net Height: | 1 mm |
| Product Net Weight: | 0.06 kg |
| |
| Function: | Accessories - Logic relays |
| Sub-Function: | Connection cable to PC, serial |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CSA Certificate: | CSA_1875990 |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 1SAA981012-2401 |
| Instructions and Manuals: | 2CDC110004C0209 |
| RoHS Information: | 1SVD981001-4400 |
| UL Certificate: | UL_E179811 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 96 mm |
| Package Level 1 Height: | 37 mm |
| Package Level 1 Depth / Length: | 124 mm |
| Package Level 1 Gross Weight: | 0.082 kg |
| Package Level 1 EAN: | 4013614389788 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001417 - Logic module |
| ETIM 5: | EC001417 - Logic module |
| ETIM 6: | EC001417 - Logic module |
| ETIM 7: | EC001417 - Logic module |
| eClass: | V11.0 : 27242216 |
