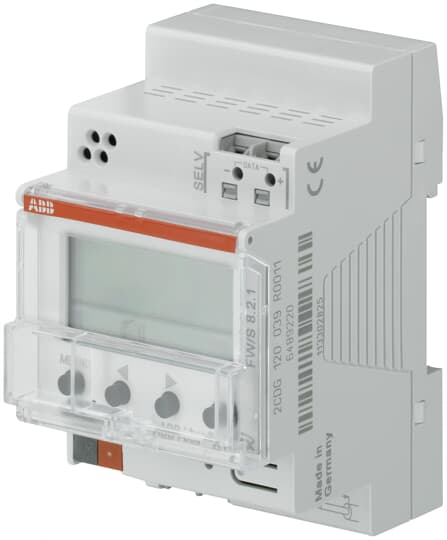

FW/S8.2.1 Radio Time Switch, 8 Channels, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | FW/S8.2.1 |
| Product ID: | 2CDG120039R0011 |
| EAN: | 4016779906661 |
| Catalog Description: | FW/S8.2.1 Radio Time Switch, 8 Channels, MDRC |
| Long Description: | The Radio Time Switch sends current time and date on the bus. The time can be optionally received via a DCF or GPS antenna. Furthermore the device can be used to easily adjust the time programs. |
| |
| Product Name: | Automation, Logic and Time Control |
| Voltage Range: | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC: | 110 ... 240 V AC |
| Power Loss: | 1 W |
| Number of Outputs: | 0 |
| Number of Channels: | 8 |
| Number of Digital Inputs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Options Provided: | Daily program |
| Weekly program | |
| Annual program | |
| Astro program | |
| Days off programmable | |
| Summer-/winter switchover | |
| Manual Operation: | Yes |
| Color: | Light grey |
| Battery Chemical Composition: | Lithium |
| Battery Size: | CR1 |
| Battery Type: | Button Cell |
| Battery Weight: | 0.01 kg |
| Number of Batteries: | 1 |
| Screen Size: | 2 in |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 3 |
| Product Net Width: | 53 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 70 mm |
| Product Net Weight: | 0.156 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 110 mm |
| Package Level 1 Height: | 102 mm |
| Package Level 1 Depth / Length: | 102 mm |
| Package Level 1 Gross Weight: | 0.329 kg |
| Package Level 1 EAN: | 4016779906661 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| E-Number (Finland): | 2815428 |
| E-Number (Sweden): | 1738419 |
| E-Number (Switzerland): | 405960505 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK509063D2701 |
| Instructions and Manuals: | 2CDG941102P0001 |
| RoHS Information: | 2CDK509063D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDG941102P0001 |
| Instructions and Manuals: | 2CDG941102P0001 |
| |
| ETIM 6: | EC000689 - Time switch for bus system |
| ETIM 7: | EC000689 - Time switch for bus system |
| ETIM 8: | EC000689 - Time switch for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8538 90 91 |
| eClass: | V11.0 : 27143140 |
| Object Classification Code: | A |
