General Information | |
| Extended Product Type: | JSTD25K |
| Product ID: | 2TLA020007R6900 |
| EAN: | 7350024479690 |
| Catalog Description: | JSTD25K Two-Hand device |

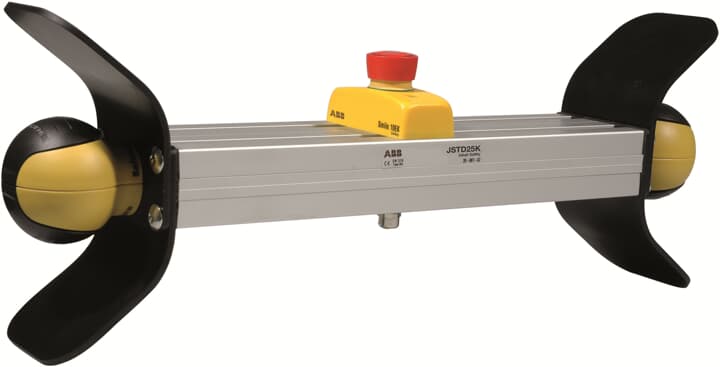

| Long Description: | Two-hand device with two JSTD1-B Safeballs and one emergency stop button Smile 10 EK. Each Safeball is mounted on a side of a 44x88 extruded aluminum profile designed for two-hand applications. The Smile 10 EK emergency stop button is mounted on top. Safeballs and Smile are pre-wired to a M12-8 male connector. The safeballs have protective flanges. |
| |
| Product Name: | Two-Hand device |
| Special Functions: | Emergency Stop Button |
| |
| Connection Configuration: | M12-8 male |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Instructions and Manuals: | 2TLC172185M0201 |
| |
| Declaration of Conformity - CE: | 2TLC172023D0201 |
| Instructions and Manuals: | 2TLC172185M0201 |
| |
| Product Net Width: | 364 mm |
| Product Net Depth / Length: | 90.5 mm |
| Product Net Height: | 189 mm |
| Product Net Weight: | 1.52 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Country of Origin: | Sweden (SE) |
| Customs Tariff Number: | 85365011 |
| |
| Object Classification Code: | B |
| ETIM 7: | EC001260 - Two-hand control device |
| ETIM 8: | EC001260 - Two-hand control device |
| eClass: | V11.0 : 27371219 |
| UNSPSC: | 39122221 |
