Article: 41P18X200750
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 41P18X200750 |
| Product ID: | 1SPE007717F2100 |
| ABB Type Designation: | Mistral41W 750 |
| EAN: | 8000126153538 |

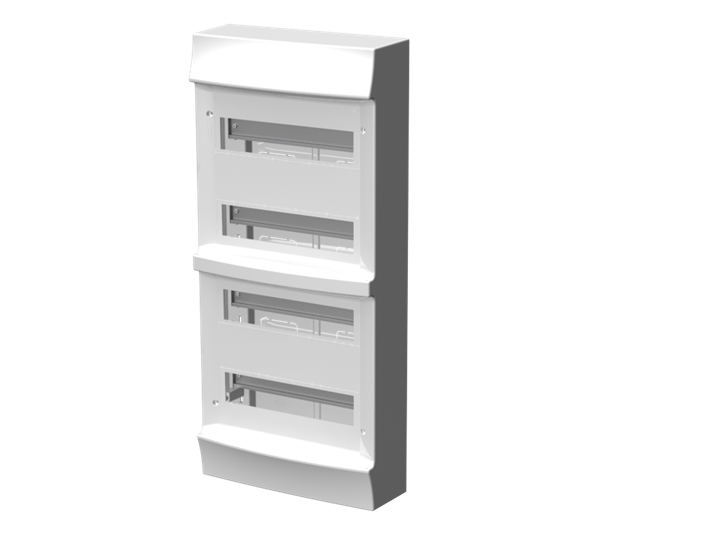

| Catalog Description: | 41P18X200750 Consumer Unit (empty) |
| Long Description: | Consumer unit, IP 41, 4x12 -modules without door |
| |
| Product Name: | Consumer Unit (empty) |
| Power Loss: | 44.8 W |
| Number of Line Terminals: | 0 |
| Number of Rows: | 4 |
| ABB Type Designation: | Mistral41W 750 |
| Cover Plate Type: | None |
| Mounting Type: | Surface mounted (plaster) |
| Door Type: | Without Door |
| Housing Material: | Plastic |
| Transparent Door: | No |
| Cover Style: | with Notch |
| DIN Place Units: | 48 |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | White |
| |
| Degree of Protection: | IP41 |
| Environmental Information: | 9AJK000330 |
| |
| Width in Number of Modular Spacings: | 48 |
| Product Net Width: | 292 mm |
| Product Net Height: | 656 mm |
| Product Net Depth / Length: | 120 mm |
| Product Net Weight: | 1.911 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 400 mm |
| Package Level 1 Height: | 125 mm |
| Package Level 1 Depth / Length: | 800 mm |
| Package Level 1 Gross Weight: | 1.911 kg |
| Package Level 1 EAN: | 8712507124159 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Bulgaria (BG) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 9AJK000330 |
| Instructions and Manuals: | 1SPC8010I5M0201 |
| RoHS Information: | 1SLT00003R2E0 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SLC801013D0201 |
| Instructions and Manuals: | 1SPC8010I5M0201 |
| |
| ETIM 6: | EC000214 - Small distribution board |
| ETIM 7: | EC000214 - Small distribution board |
| ETIM 8: | EC000214 - Small distribution board |
| WEEE Category: | Product Not in WEEE Scope |
| Object Classification Code: | Not applicable |
