Article: 41S12X21
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 41S12X21 |
| Product ID: | 1SLM004100A1705 |
| ABB Type Designation: | Mistral41F |
| EAN: | 8000126118896 |

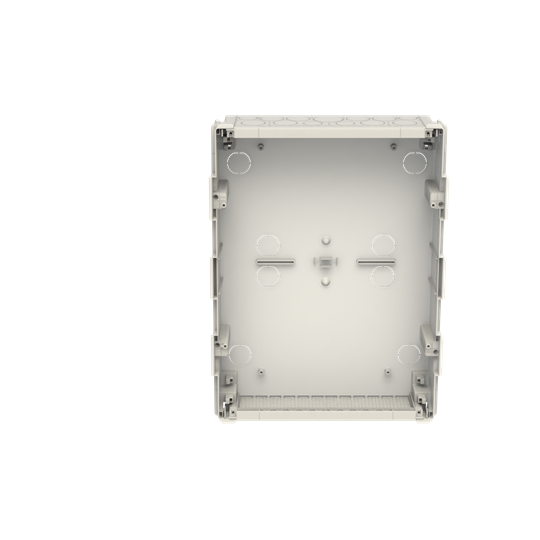

| Catalog Description: | 41S12X21 Consumer Unit (empty) |
| Long Description: | Flush-mounting box 650 MISTRAL41F 24M;Flush-mounting box 650 MISTRAL41F 24M |
| |
| Product Name: | Consumer Unit (empty) |
| Power Loss: | 41 W |
| Number of Line Terminals: | 0 |
| Number of Rows: | 2 |
| ABB Type Designation: | Mistral41F |
| Cover Plate Type: | None |
| Mounting Type: | Flush mounted (plaster) |
| Door Type: | Single |
| Enclosure Material: | thermoplastic |
| Housing Material: | Plastic |
| Cover Style: | with Notch |
| DIN Place Units: | 24 |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | white |
| |
| Degree of Protection: | IP41 |
| Protection Class: | Isolated |
| |
| Width in Number of Modular Spacings: | 24 |
| Product Net Width: | 294 mm |
| Product Net Height: | 415 mm |
| Product Net Depth / Length: | 80 mm |
| Product Net Weight: | 0.68 kg |
| Built-In Depth (t2): | 79 mm |
| |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Width: | 330 mm |
| Package Level 1 Height: | 530 mm |
| Package Level 1 Depth / Length: | 445 mm |
| Package Level 1 Gross Weight: | 4.2 kg |
| Package Level 1 EAN: | 8000126118902 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107492A4740 |
| Instructions and Manuals: | 9AKK107046A4893 |
| RoHS Information: | 9AKK107492A4740 |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | 9AKK107046A4893 |
| |
| ETIM 6: | EC000214 - Small distribution board |
| ETIM 7: | EC000214 - Small distribution board |
| ETIM 8: | EC000214 - Small distribution board |
| WEEE Category: | Product Not in WEEE Scope |
| Object Classification Code: | U |
