General Information | |
| Extended Product Type: | 41Z58 |
| Product ID: | 1SPE007715F0732 |
| EAN: | 8712507123503 |

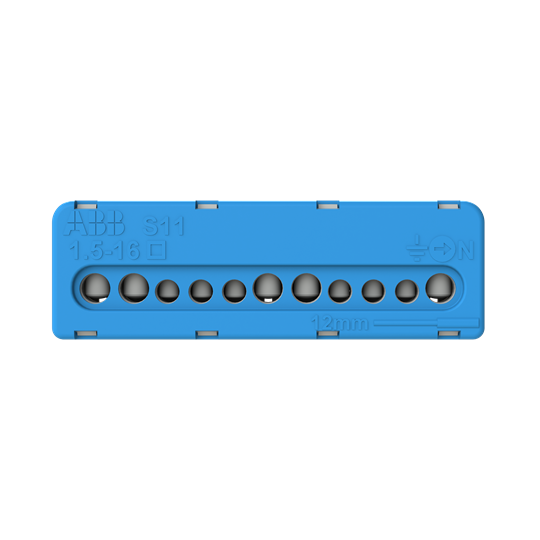

| Catalog Description: | 41Z58 Terminal block |
| Long Description: | Terminal block N 5x16mm²+6x6mm²;Terminal block N 5x16mm²+6x6mm² |
| |
| Product Name: | Terminal block |
| Suitable for Product Class: | MISTRAL65;MISTRAL41F; MISTRAL41W |
| Rated Voltage (Ur): | 400 V |
| Rated Current (In): | 100 A |
| Number of Line Terminals: | 5 |
| Accessory Type: | Terminal block |
| Mounting Type: | Direct mounting |
| Terminal Connection Type: | N-Terminal |
| Insulation Material: | Thermoplastic |
| Color: | Blue |
| Rated Cross-Section: | 1 - Solid-Core 6...16 mm² |
| 2 - Fine-Strand with Cable End Sleeve 6...16 mm² | |
| 3 - Fine-Strand without Cable End Sleeve 6...16 mm² | |
| 4 - Multi-Wired 6...16 mm² | |
| Terminal Type: | Screw Terminals |
| |
| Environmental Information: | 9AJK000330 |
| |
| Product Net Weight: | 0.04 kg |
| Product Net Length: | 11 mm |
| |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Gross Weight: | 0.041 kg |
| Package Level 1 EAN: | 8712507123503 |
| Package Level 2 Units: | 150 piece |
| Package Level 2 EAN: | 8712507123206 |
| |
| Minimum Order Quantity: | 5 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Netherlands (NL) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 9AJK000330 |
| Instructions and Manuals: | 1SPC801030M0201 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SLC801013D0201 |
| Instructions and Manuals: | 1SPC801030M0201 |
| |
| ETIM 6: | EC001284 - Single- and multi-pole terminal strip |
| ETIM 7: | EC001284 - Single- and multi-pole terminal strip |
| ETIM 8: | EC001284 - Single- and multi-pole terminal strip |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
| Object Classification Code: | X |
