Article: 41Z21
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 41Z21 |
| Product ID: | 1SPE007715F5112 |
| EAN: | 8712507128256 |

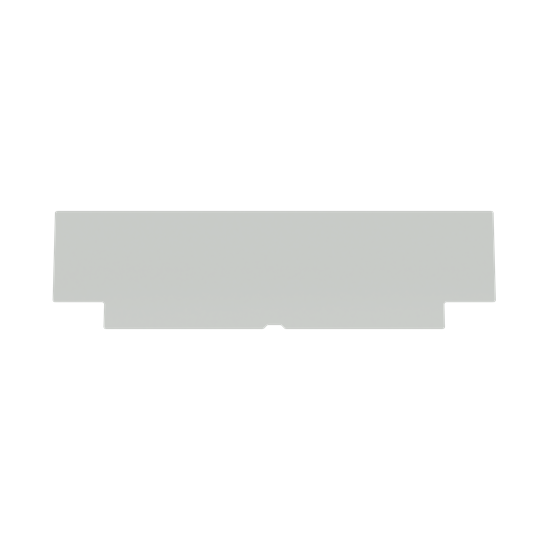

| Catalog Description: | 41Z21 Partition wall |
| Long Description: | partition horizontal, serie MISTRAL41;Partition Wall 12M |
| |
| Product Name: | Partition wall |
| Suitable for Product Class: | MISTRAL41W |
| Accessory Type: | Partition wall |
| Mounting Type: | Wall-mounting |
| Material: | Plastic |
| DIN Place Units: | 12 |
| |
| Degree of Protection: | IP41 |
| Environmental Information: | 9AJK000330 |
| |
| Width in Number of Modular Spacings: | 12 |
| Product Net Width: | 77.000 mm |
| Product Net Height: | 4.000 mm |
| Product Net Depth / Length: | 300.000 mm |
| Product Net Weight: | 0.080 kg |
| |
| Package Level 1 Units: | 5 piece |
| Package Level 1 Width: | 77.000 mm |
| Package Level 1 Height: | 20.000 mm |
| Package Level 1 Depth / Length: | 300.000 mm |
| Package Level 1 Gross Weight: | 0.400 kg |
| Package Level 1 EAN: | 8712507128270 |
| Package Level 2 Units: | pallet (lift) 5 piece |
| Package Level 2 Width: | 265.000 mm |
| Package Level 2 Height: | 280.000 mm |
| Package Level 2 Depth / Length: | 395.000 mm |
| Package Level 2 Gross Weight: | 0.400 kg |
| Package Level 2 EAN: | 8712507128270 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Netherlands (NL) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 9AJK000330 |
| Instructions and Manuals: | 1SPC8010I5M0201 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SLC801013D0201 |
| Instructions and Manuals: | 1SPC8010I5M0201 |
| |
| ETIM 6: | EC000770 - Separation plate for meter-/distribution boards |
| ETIM 7: | EC000770 - Separation plate for meter-/distribution boards |
| ETIM 8: | EC000770 - Separation plate for meter-/distribution boards |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Business |
| Object Classification Code: | Not applicable |
