General Information | |
| Extended Product Type: | 41Z70 |
| Product ID: | 1SPE007715F9701 |
| EAN: | 8712507126672 |

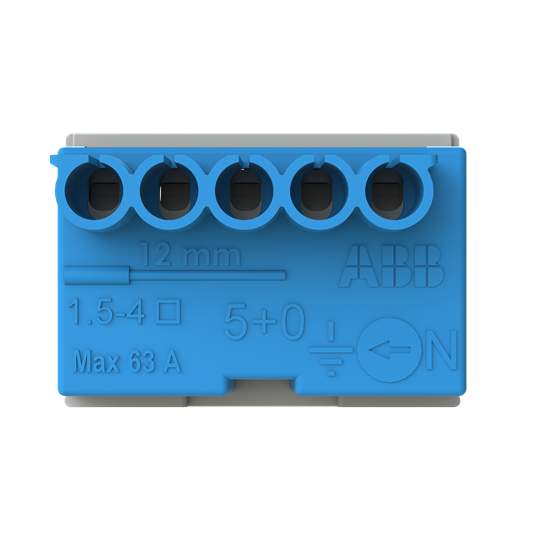

| Catalog Description: | 41Z70 Terminal block screwless |
| Long Description: | Terminal block screwless N 5x1,5-4mm²;Terminal block screwless N 5x1,5-4mm² |
| |
| Product Name: | Terminal block screwless |
| Suitable for Product Class: | MISTRAL65;MISTRAL41F; MISTRAL41W |
| Rated Voltage (Ur): | 230 V |
| Rated Current (In): | 63 A |
| Number of Clamp Positions: | 5 |
| Number of Line Terminals: | 2 |
| Accessory Type: | Terminal block |
| Terminal Connection Type: | N-Terminal |
| Color: | Blue |
| Terminal Type: | Screwless Terminals |
| |
| Environmental Information: | 9AJK000330 |
| |
| Product Net Weight: | 0.022 kg |
| |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Gross Weight: | 0.110 kg |
| Package Level 1 EAN: | 8712507126672 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Finland): | 3405547 |
| Country of Origin: | Netherlands (NL) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 9AJK000330 |
| Instructions and Manuals: | 1SPY002415D0700 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SLC801013D0201 |
| Instructions and Manuals: | 1SPY002415D0700 |
| |
| ETIM 6: | EC000446 - Screw less terminal |
| ETIM 7: | EC000446 - Screw less terminal |
| ETIM 8: | EC000446 - Push in terminal |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
| Object Classification Code: | X |
