General Information | |
| Extended Product Type: | 416EC6 |
| Product ID: | 2CMA102023R1000 |
| EAN: | 7392696020237 |

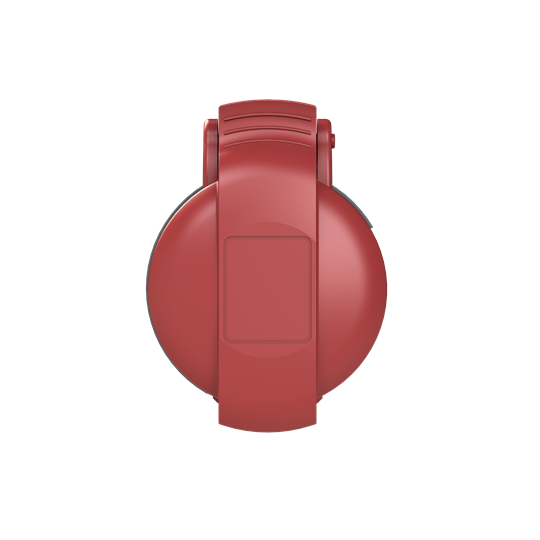

| Catalog Description: | Industrial Connectors, 3P+N+E, 16 A, 346 … 415 V |
| Long Description: | Industrial Connectors, 3P+N+E, IP44, 16 A, 346 … 415 V |
| |
| E-Number (Sweden): | E2416184 |
| E-Number (Finland): | 2420088 |
| E-Number (Norway): | 1540703 |
| EAN: | 7392696020237 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 10 piece |
| |
| Product Net Width: | 69 mm |
| Product Net Height: | 90 mm |
| Product Net Weight: | 0.23 kg |
| |
| Package Level 1 Width: | 138 mm |
| Package Level 1 Depth / Length: | 158 mm |
| Package Level 1 Height: | 345 mm |
| Package Level 1 Gross Weight: | 2.3 kg |
| Package Level 1 EAN: | 7392696030557 |
| Package Level 1 Units: | box 10 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | 2CHC660166X0201 |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| SEMKO Certificate: | 1617363 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 3P+N+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 1 ... 2.5 mm² |
| Cable Diameter: | 17 mm |
| Cable Entry Position: | Swivel |
| Color: | Red |
| Connection Type: | Screw |
| Degree of Protection: | IP44 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Connector |
| Housing Material: | Plastic (PA) |
| Invoice Description: | Ind. P&S#416EC6 |
| Number of Poles: | 5 |
| Order Multiple: | 10 piece |
| Product Main Type: | EC |
| Product Name: | Industrial Connector |
| Protection Type: | Splashproof |
| Rated Current (In): | 16 A |
| Rated Voltage (Ur): | 200/346 ... 240/415 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 60309-1, -2 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7012 - Basalt Grey |
| |
| eClass: | 27440509 |
| UNSPSC: | 39120000 |
| |
| Wire Size: | 14 ... 12 AWG |
| Tightening Torque: | WireClamp0.8 N·m |
