Article: 416A6
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 416A6 |
| Product ID: | 2CMA168127R1000 |
| EAN: | 7392696681278 |

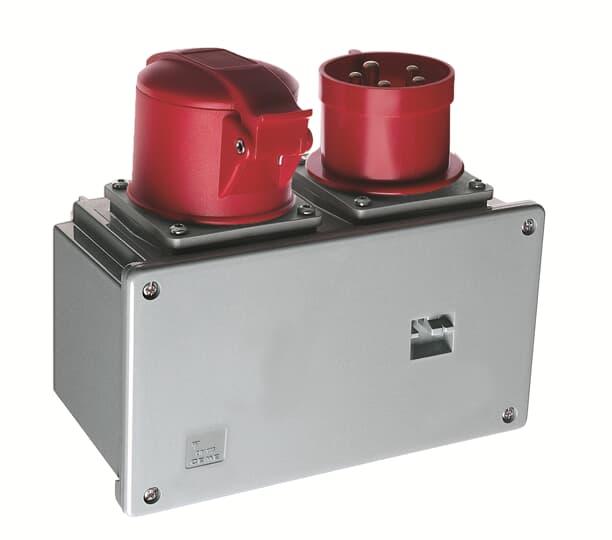

| Catalog Description: | Site connection unit, 6h, 16A, IP44, 3P+N+E |
| Long Description: | Site connection unit, earthing sleeve position 6h, rated current 16A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red |
| |
| E-Number (Sweden): | E2417447 |
| E-Number (Finland): | 2421505 |
| E-Number (Norway): | 2417447 |
| EAN: | 7392696681278 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 208 mm |
| Product Net Height: | 179 mm |
| Product Net Weight: | 0.74 kg |
| |
| Package Level 1 Width: | 208 mm |
| Package Level 1 Depth / Length: | 125 mm |
| Package Level 1 Height: | 179 mm |
| Package Level 1 Gross Weight: | 0.74 kg |
| Package Level 1 EAN: | 7392696681278 |
| Package Level 1 Units: | box 1 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 94 kg |
| Package Level 2 EAN: | 7392696076517 |
| Package Level 2 Units: | pallet (lift) 100 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| SCIP: | 6232ed90-8c75-4ee2-af98-60e70601b727 Czech Republic (CZ) |
| |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 3P+N+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Length: | 0 m |
| Color: | Red |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP44 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Site connection unit |
| Housing Material: | Thermoplastic (PBT) |
| Invoice Description: | Ind. P&S#416A6 |
| Mounting Holes: | 80x158 |
| Number of Poles: | 5 |
| Order Multiple: | 1 piece |
| Product Main Type: | Adaptor |
| Product Name: | Industrial Adaptor |
| Rated Current (In): | 16 A |
| Rated Voltage (Ur): | 200/346 ... 240/415 V |
| Standards: | IEC 60309-1, -2 |
| Sub-Function: | The enclosure has a terminal block to supply distribution boards in sheds.Tube entry Ø 25.5mm |
| Suitable For: | 416A6 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440501 |
| UNSPSC: | 39121406 |
