Article: AF26N1-30-11-13
Article: AF26N1-30-11-13
AF26N1-30-11-13 100-250V50/60HZ-DC Contactor
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AF26N1-30-11-13 |
| Product ID: | 1SBL237001N1311 |
| EAN: | 3471523016613 |
| Catalog Description: | AF26N1-30-11-13 100-250V50/60HZ-DC Contactor |

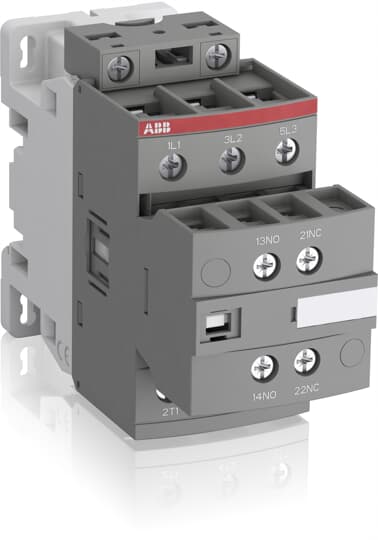

| Long Description: | The AF26N1-30-11-13 is a 3 pole - 600 V UL, NEMA size N1 contactor with pre-mounted auxiliary contacts and Screw, switching power circuits up to 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Country of Origin: | United States (US) |
| Selling Unit of Measure: | piece |
| |
| CB Certificate: | CB_SE-96552M1 |
| CQC Certificate: | CQC2010010304445623 |
| CQC2020010304294316 | |
| cUL Certificate: | UL_20180227_E312527_7_1 |
| Declaration of Conformity - CCC: | 2020980304001254 |
| 2020980304001052 | |
| Declaration of Conformity - CE: | 1SBD250027U1000 |
| Instructions and Manuals: | 1SBC101027M6801 |
| RoHS Information: | 1SBD250027U1000 |
| UL Certificate: | UL_20140305-E312527_7_1 |
| UL Listing Card: | E312527 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101027M6801 |
| Mounting Positions: | 1SBC500297F0000 |
| UL Listing Card: | E312527 |
| EPLAN Graphical Macro: | 9AKK106930A0702 |
| EPLAN Macro: | 9AKK106930A0701 |
| |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| ETIM 8: | EC000066 - Power contactor, AC switching |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 8536 49 00 |
| UNSPSC: | 39121529 |
| eClass: | V11.0 : 27371003 |
| Object Classification Code: | Q |
