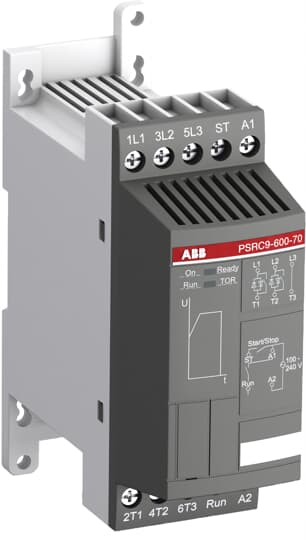

Article: PSRC9-600-70-1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
Category Related Guides: ABB improves mining industry efficiency - Softstarter PSTX
General Information | |
| Global Commercial Alias: | PSRC9-600-70-1 |
| Extended Product Type: | PSRC9-600-70-1 |
| Product ID: | 1SFA896205R7001 |
| ABB Type Designation: | PSRC9-600-70-1 |
| EAN: | 7320500540404 |
| Catalog Description: | PSRC9-600-70-1 Softstarter |
| Long Description: | Softstarter PSRC9-600-70-1 |
| Interactive Guides | |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SFC132012C0201 |
| |
| Product Net Width: | 114 mm |
| Product Net Height: | 140 mm |
| Product Net Depth / Length: | 45 mm |
| Product Net Weight: | 0.4 kg |
| |
| Rated Operational Voltage: | 208 ... 600 V AC |
| Rated Control Supply Voltage (Us): | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc): | 50 Hz / 60 Hz 100 ... 240 V AC |
| DC Operation 24 V | |
| Rated Frequency (f): | 50/60 Hz |
| Main Circuit 50 / 60 Hz | |
| Service Factor Percentage: | 100 % |
| Starting Capacity at Maximum Rated Current Ie: | 4xIe for 6s |
| Product Main Type: | PSRC9 |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CQC Certificate: | CQC2006010304208085 |
| Declaration of Conformity - CCC: | 2020980304001087 |
| Declaration of Conformity - CE: | 2CMT003878 |
| Environmental Information: | 1SFC132038D0201 |
| RoHS Information: | 1SFC132031D0202 |
| |
| Package Level 1 Width: | 121 mm |
| Package Level 1 Depth / Length: | 50 mm |
| Package Level 1 Height: | 156 mm |
| Package Level 1 Gross Weight: | 0.55 kg |
| Package Level 1 EAN: | 7320500540404 |
| Package Level 1 Units: | box 1 piece |
| |
| Object Classification Code: | Q |
| ETIM 6: | EC002572 - Motor management device |
| UNSPSC: | 39121521 |
