Article: WZ/S1.3.1.2
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | WZ/S1.3.1.2 |
| Product ID: | 2CDG110184R0011 |
| EAN: | 4016779928977 |

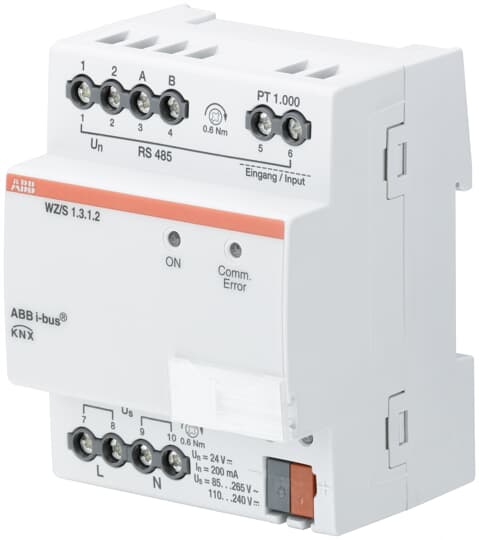

| Catalog Description: | WZ/S1.3.1.2 Weather Unit, MDRC |
| Long Description: | The weather unit WZ/S is used to detect and process weather data from the weather sensor. The weather sensor is providing data for twilight, brightness in 3 directions, rain, temperature, information on day/night, wind speed, date and time. 4 value memory stands for order, per value memory can 24 values be stored. The weather unit can only be used with the weather sensor WES/A. An integrated power supply is supplying the voltage for the weather sensor. The device can be operated with a suppy voltage of 115 to 230 V, 50/60 Hz. |
| |
| Product Name: | Standard Inputs |
| Voltage Range: | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC: | 230 V AC |
| Power Loss: | 3 W |
| Number of Outputs: | 0 |
| Number of Digital Inputs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 72 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.23 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.27 kg |
| Package Level 1 EAN: | 4016779928977 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| E-Number (Finland): | 2815538 |
| E-Number (Sweden): | 1738709 |
| E-Number (Switzerland): | 405551205 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK504101D2701 |
| Instructions and Manuals: | 2CDG941142P0003 |
| RoHS Information: | 2CDK504101D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC504091D0201 |
| Instructions and Manuals: | 2CDG941142P0003 |
| |
| ETIM 6: | EC000926 - Physical sensor for bus system |
| ETIM 7: | EC000926 - Physical sensor for bus system |
| ETIM 8: | EC000926 - Physical sensor for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8538 90 91 |
| eClass: | V11.0 : 27143137 |
| Object Classification Code: | A |
