Article: WSIN150-M30N
Article: WSIN150-M30N

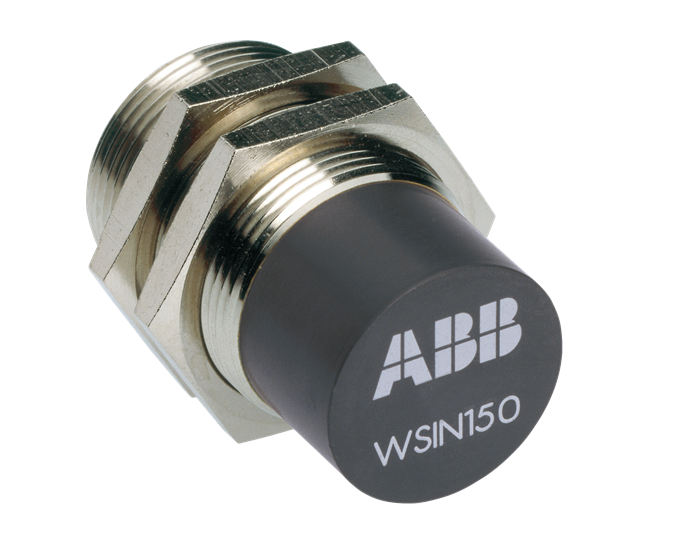

WSIN150-M30N, ind.Sens. f.Wireless, 15mm
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | WSIN150-M30N |
| Product ID: | 1SAF130921R3000 |
| ABB Type Designation: | WSIN150-M30N |
| Catalog Description: | WSIN150-M30N, ind.Sens. f.Wireless, 15mm |
| Long Description: | WSIN150-M30N, ind.Sens. f.Wireless, 15mm |
| |
| ABB Type Designation: | WSIN150-M30N |
| Ambient Air Temperature: | Operation -25 ... 70 °C |
| Storage -40 ... 70 °C | |
| CN8: | 85413000 |
| Country of Origin: | Germany (DE) |
| Customs Tariff Number: | 85413000 |
| Data Sheet, Technical Information: | 2CDC142004D0202 |
| Declaration of Conformity - CE: | 1SAD938500-0067 |
| Degree of Protection: | acc. to IEC 60529 IP67 |
| Environmental Information: | 1SAA952005-2401 |
| Gross Weight: | 0.13 kg |
| Housing Material: | Nickel plated brass |
| Hysteresis Range: | <=10 % |
| Instructions and Manuals: | 2CDC142004D0202 |
| Invoice Description: | WSIN150-M30N, ind.Sens. f.Wireless, 15mm |
| Made To Order: | No |
| Minimum Order Quantity: | 1 piece |
| Mounting Type: | Non flush mounting |
| Object Classification Code: | B |
| Operating Distance (Sn): | 0 ... 12.15 mm |
| Order Multiple: | 1 piece |
| Product Main Type: | WSIN150 |
| Product Name: | Sensor head |
| Product Net Height: | 30 mm |
| Product Net Length: | 60 mm |
| Product Net Weight: | 0.12 kg |
| Product Net Width: | 30 mm |
| Product Type: | PLC-Wireless |
| Quote Only: | No |
| Resistance to Shock acc. to IEC 60068-2-27: | T<=11ms, Shock b <30 m/s² |
| RoHS Information: | 1SAA952002-4401 |
| RoHS Status: | No declaration needed |
| Selling Unit of Measure: | piece |
| Short Description: | WSIN150-M30N, ind.Sens. f.Wireless, 15mm |
| Stocked At (Warehouses): | Menden, Germany |
| Temperature Drift: | +10 % |
| Tightening Torque: | 30 N·m |
| Two Speed Motor: | No |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
