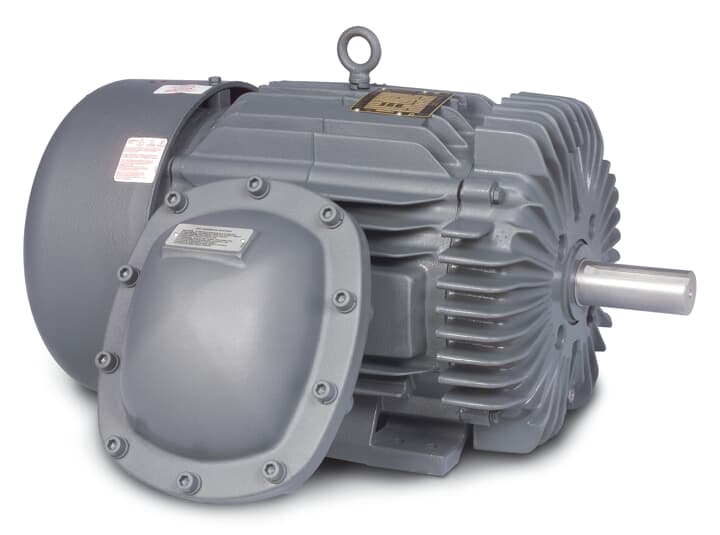

Article: EM7054T-C
Article: EM7054T-C
10.000 hp, 15.000 hp, 1765//1470 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 254T, F1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Global Commercial Alias: | EM7054T-C |
| Product ID: | 7BEM7054T-C |
| ABB Type Designation: | 10/15HP,1470/1765RPM,3PH,50/60HZ,25 |
| Catalog Description: | 10.000 hp, 15.000 hp, 1765//1470 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 254T, F1 |
| |
| ABB Type Designation: | 10/15HP,1470/1765RPM,3PH,50/60HZ,25 |
| Ambient Temperature: | 40 °C |
| Bearing: | 6309 |
| Bearing NDE: | 6208 |
| Country of Origin: | United States (US) |
| Customs Tariff Number: | 85015220 |
| Design: | B |
| Enclosure Type: | XPFC |
| Explosion Proof Group Class: | Class I, Group C & D |
| Class II, Group F & G | |
| Frame Material: | Iron |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Global Commercial Alias: | EM7054T-C |
| Gross Weight: | 171.612 kg |
| Horsepower Rating UL/CSA: | 10.000 Hp |
| 15.000 Hp | |
| Insulation Class: | B |
| Invoice Description: | 10.000 hp, 15.000 hp, 1765//1470 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 254T, F1 |
| Made To Order: | No |
| Marketing Description: | 10.000 hp, 15.000 hp, 1765//1470 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 254T, F1 |
| Minimum Order Quantity: | 0.000 piece |
| Motor Base Type: | Rigid |
| Motor Frame Size: | 254T |
| Number of Phases: | 3 |
| Number of Poles: | 4 |
| Number of Speeds: | Single Speed |
| Order Multiple: | 0.000 piece |
| Power Factor: | 84 % |
| Product Name: | Explosion Proof Motors |
| Product Net Length: | 25.50 in |
| Product Net Weight: | 171.612 kg |
| Quote Only: | No |
| Rated Current (In): | 36 A |
| 18 A | |
| 28.8 A | |
| 14.4 A | |
| Rated Efficiency: | 92.4 % |
| Rated Speed: | 1,765 r/min |
| 1,470 r/min | |
| RoHS Information: | RoHS Compliant |
| Selling Unit of Measure: | piece |
| Service Factor Percentage: | 1.00 % |
| Standards: | NEMA |
| Stocked At (Warehouses): | China |
| Alabama, United States | |
| Alaska, United States | |
| Type of Duty: | CONT |
| Voltage Rating: | 460 V |
| 380 V | |
| 230 V | |
| 190 V |
