Article: ESP 415CD40
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | ESP 415CD40 |
| Product ID: | 7TCA085460R0303 |
| EAN: | 5415022183269 |

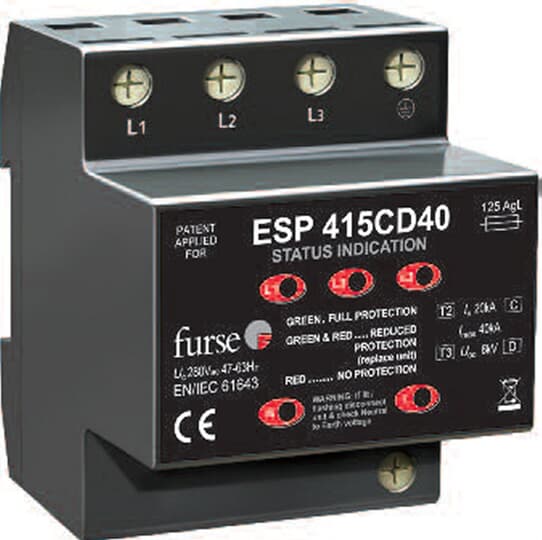

| Catalog Description: | ESP 415CD40 Surge Protective Device |
| Long Description: | ESP 415CD40 COMPACT POWER SPD FOR 3 PHASE 415V SUPPLIES, DIN RAIL MOUNTING |
| |
| Standards: | IEC 61643-11 |
| Product Name: | Surge Protective Devices |
| Suitable For: | To protect systems against transient overvoltages or surges from lightning and electrical switching events |
| Rated Frequency (f): | 50 / 60 Hz |
| Connection Type: | Screw Clamp |
| Wire Stripping Length: | 11 mm |
| |
| Ambient Air Temperature: | Operation -40 ... +80 °C |
| |
| Product Net Width: | 90 mm |
| Product Net Height: | 72 mm |
| Product Net Depth / Length: | 88 mm |
| Product Net Weight: | 0.5 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 EAN: | 5415022183269 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536308000 |
| Country of Origin: | United Kingdom (GB) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 7TKK001514 |
| Instructions and Manuals: | 9AKK106713A1685 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK106713A1869 |
| Instructions and Manuals: | 9AKK106713A1685 |
| |
| ETIM 6: | EC000941 - Surge protection device for power supply systems |
| ETIM 7: | EC000941 - Surge protection device for power supply systems |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8536308000 |
