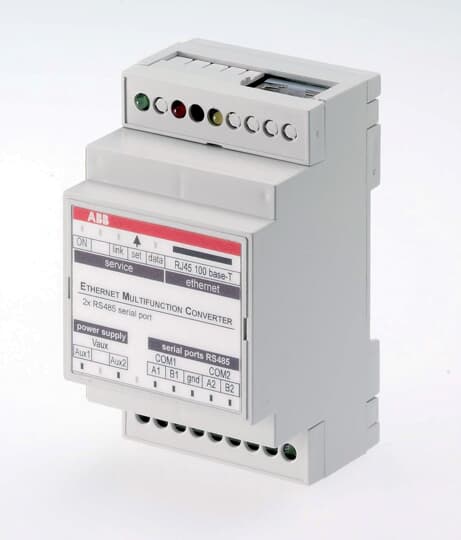

CUS 485 TCP/IP Serial converter and signal repeater
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | CUS 485 TCP/IP |
| Product ID: | 2CSG258563R4051 |
| EAN: | 8012542585633 |
| Catalog Description: | CUS 485 TCP/IP Serial converter and signal repeater |
| Long Description: | CUS is a serial converter and signal repeater |
| |
| Product Name: | Serial converter and signal repeater |
| Current Type: | Mains |
| Power Consumption (@P | |
| cons | 4 V·A |
| Power Loss: | at Rated Operating Conditions per Pole 3.5 W |
| Mounting Type: | DIN-Rail |
| Type of Indicator: | None |
| I/O Option: | From Modbus RTU to Modbus TCP/IP protocol convertion |
| Communication: | Modbus TCP/IP |
| |
| Ambient Air Temperature: | Operation -10 ... 60 °C |
| Degree of Protection: | IP52 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Environmental Information: | See RoHS Information |
| |
| Product Net Width: | 0.058 m |
| Product Net Height: | 0.055 m |
| Product Net Depth / Length: | 0.090 m |
| Product Net Weight: | 0.500 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.058 m |
| Package Level 1 Height: | 0.11 m |
| Package Level 1 Depth / Length: | 0.115 m |
| Package Level 1 Gross Weight: | 0.5 kg |
| Package Level 1 EAN: | 8012542585633 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90303100 |
| E-Number (Finland): | 2818963 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5702 |
| Environmental Information: | See RoHS Information |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 2CSC445020K0902 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0431 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001194 - Power quality analyzer |
| ETIM 7: | EC001194 - Power quality analyser |
| ETIM 8: | EC001194 - Power quality analyser |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90303100 |
| Object Classification Code: | P |
