General Information | |
| Extended Product Type: | VEM4K |
| Product ID: | 1SBN030113R1000 |
| EAN: | 3471523131392 |

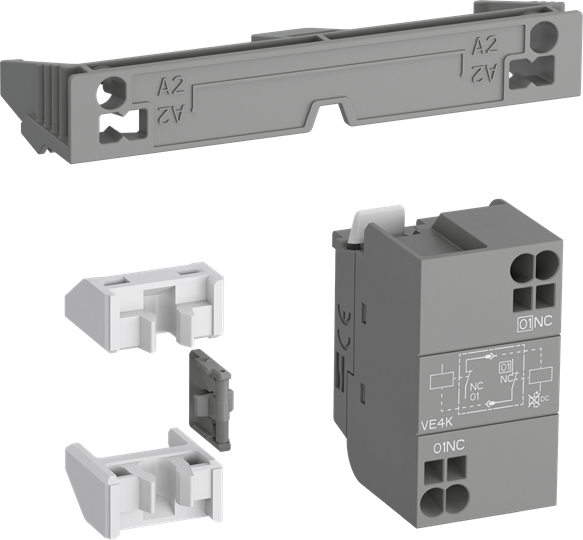

| Catalog Description: | VEM4K Mechanical and Electrical Interlock Unit |
| Long Description: | VEM4K Mechanical and Electrical Interlock Unit |
| |
| Product Name: | Mechanical and Electrical Interlock Unit |
| Suitable For: | AF09 |
| AF12 | |
| AF16 | |
| AF26 | |
| AF30 | |
| AF38 | |
| AFC09 | |
| AFC12 | |
| AFC16 | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| AF09B | |
| AF09ZB | |
| AF12B | |
| AF12ZB | |
| AF16B | |
| AF16ZB | |
| AF26B | |
| AF26ZB | |
| AF30B | |
| AF30ZB | |
| AF38B | |
| AF38ZB | |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts NO: | 1 |
| Wire Stripping Length: | Auxiliary Circuit 10 mm |
| Terminal Type: | Push-in Spring Terminals |
| |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 25 mm |
| Product Net Height: | 43 mm |
| Product Net Depth / Length: | 31.6 mm |
| Product Net Weight: | 0.03 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 45 mm |
| Package Level 1 Height: | 91 mm |
| Package Level 1 Depth / Length: | 34 mm |
| Package Level 1 Gross Weight: | 0.043 kg |
| Package Level 1 EAN: | 3471523131392 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Finland): | 3708089 |
| Country of Origin: | Poland (PL) |
| Selling Unit of Measure: | piece |
| |
| CB Certificate: | CB_SE-93053 |
| CQC Certificate: | CQC2013010304651497 |
| Declaration of Conformity - CCC: | 2020980304001259 |
| Declaration of Conformity - CE: | 1SBD250007U1000 |
| RoHS Information: | 1SBD250007U1000 |
| |
| ETIM 6: | EC001044 - Mechanic interlock for switch |
| ETIM 7: | EC001044 - Mechanic interlock for switch |
| ETIM 8: | EC001044 - Mechanic interlock for switch |
| EPLAN Catalog Tree: | Electrical engineering / Electrically-operated mechanical devices / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8538 90 99 |
| UNSPSC: | 39120000 |
