Article: GLX+ Q 21 W 120
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | GLX+ Q 21 W 120 |
| Product ID: | 2CSM208121R1000 |
| EAN: | 5413656663737 |

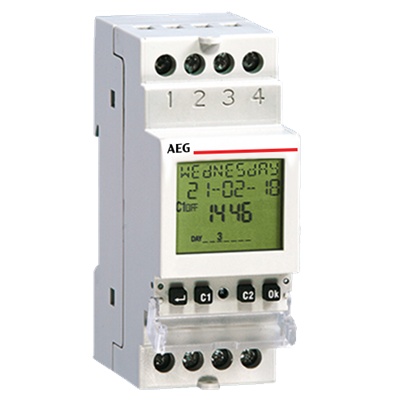

| Catalog Description: | GLX+ Q 21 W 120 Digital Timer |
| |
| Product Name: | Digital Timer |
| Function: | Daily digital time switch 1 channel with Bluetooth connection |
| Rated Operational Voltage: | 115 ... 230 V AC |
| Supply Voltage: | 115 ... 230 V AC |
| Maximum Switching Current: | 16 A |
| Rated Frequency (f): | 50 ... 60 Hz |
| Power Loss: | 2 W |
| Accuracy: | ± 0.5sec/24h |
| Number of Channels: | 1 |
| Maximum Number of Programs: | 120 |
| Minimum Switching Time: | 1 second [unit of time] |
| Meter Type: | Digital |
| Mounting Type: | DIN rail |
| Battery Life: | 5 year |
| Connecting Capacity: | 2.5 mm² |
| |
| Ambient Air Temperature: | Operation -20 ... 50 °C |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 35 mm |
| Product Net Height: | 65 mm |
| Product Net Depth / Length: | 87 mm |
| Product Net Weight: | 0.129 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 60 mm |
| Package Level 1 Height: | 80 mm |
| Package Level 1 Depth / Length: | 97 mm |
| Package Level 1 Gross Weight: | 0.210 kg |
| Package Level 1 EAN: | 5413656663737 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002305 - Digital time switch for distribution board |
| ETIM 7: | EC002305 - Digital time switch for distribution board |
| ETIM 8: | EC002305 - Digital time switch for distribution board |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85364900 |
| Object Classification Code: | Q |
