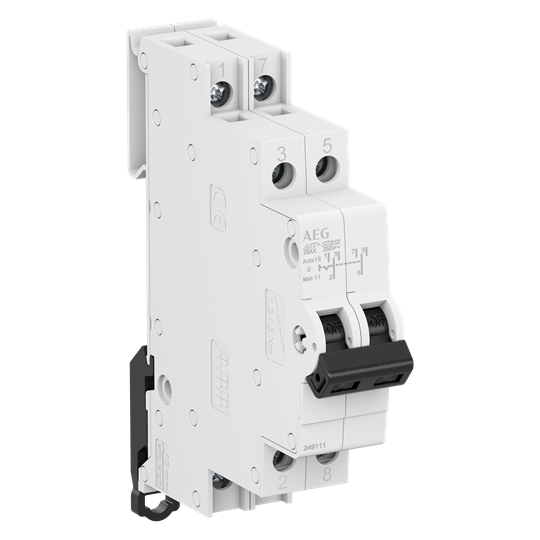

Article: AST+ SZ162
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AST+ SZ162 |
| Product ID: | 2CCG000213R0001 |
| EAN: | 5413656616894 |
| Catalog Description: | AST+ SZ162 Switch |
| Long Description: | Group switches (I-0-II) according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25 A, 250 VACPDC, Contacts: 1 CO/2 CO, Module width: 0,5/1 |
| |
| Standards: | EN60669-1 |
| Product Name: | Switch |
| Rated Operational Voltage: | 250 V |
| Rated Current (In): | 16 A |
| Rated Frequency (f): | 50 Hz |
| Number of Poles: | 2 |
| Number of Batteries: | 0 |
| |
| Product Net Width: | 18 mm |
| Product Net Height: | 67.5 mm |
| Product Net Depth / Length: | 85 mm |
| Product Net Weight: | 87 g |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Height: | 85 mm |
| Package Level 1 Depth / Length: | 185 mm |
| Package Level 1 Gross Weight: | 923 g |
| Package Level 1 EAN: | 5413656616894 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85365053 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001545 - Main switch for distribution board |
| ETIM 7: | EC001545 - Main switch for distribution board |
| ETIM 8: | EC001545 - Main switch for distribution board |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365053 |
| Object Classification Code: | Q |
