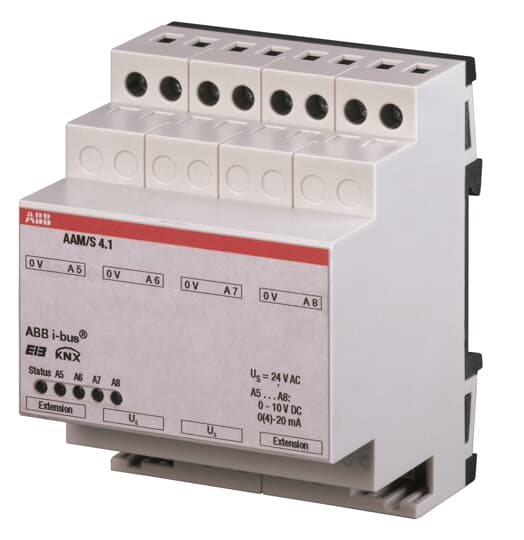

AAM/S4.1 Analogue Actuator Module, 4-fold, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AAM/S4.1 |
| Product ID: | 2CDG120006R0011 |
| EAN: | 4016779658874 |
| Catalog Description: | AAM/S4.1 Analogue Actuator Module, 4-fold, MDRC |
| Long Description: | The Analogue Actuator Module enlarges the Analogue Actuator AA/S 4.1 by four analogue outputs. The device converts received values into analogue output signals. These outputs are software-parameterized for voltage or current signals. The 24 V AC power supply can be carried out by AA/S 4.1. |
| |
| Product Name: | Standard Outputs |
| Function: | Analogue Actuator Module |
| Sub-Function: | 4-fold |
| Voltage Range: | 0 ... 10 V DC |
| Auxiliary Voltage AC/DC: | KNX |
| Maximum Switching Current: | 0.02 mA |
| Power Loss: | 0 W |
| Number of Outputs: | 4 |
| Number of LEDs: | 1 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 72 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 69.5 mm |
| Product Net Weight: | 0.15 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 75 mm |
| Package Level 1 Height: | 80 mm |
| Package Level 1 Depth / Length: | 95 mm |
| Package Level 1 Gross Weight: | 0.18 kg |
| Package Level 1 EAN: | 4016779658874 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK505031D0601 |
| Instructions and Manuals: | 2CDG941041P0002 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC505067D0204 |
| Instructions and Manuals: | 2CDG941041P0002 |
| |
| ETIM 6: | EC001096 - Analogue actuator for bus system |
| ETIM 7: | EC001096 - Analogue actuator for bus system |
| ETIM 8: | EC001096 - Analogue actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| CN8: | 8538 90 91 |
| eClass: | V11.0 : 27143109 |
| Object Classification Code: | A |
