Article: ABB560P9
Article: ABB560P9

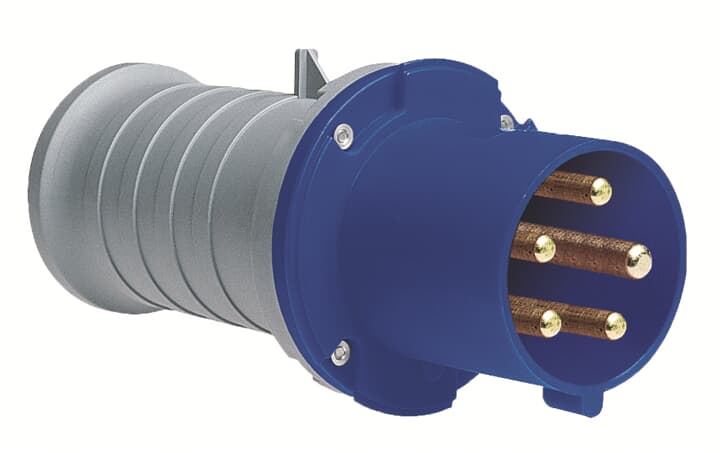

IEC Plug 60A 4P5W 3phase-Y 120/208V Clock Position Of Grounding Contact 9 hour Color code Blue, UL/CSA/CE approved
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | ABB560P9 |
| Product ID: | 2CMA101933R1000 |
| EAN: | 7392696019330 |
| Catalog Description: | IEC Plug 60A 4P5W 3phase-Y 120/208V Clock Position Of Grounding Contact 9 hour Color code Blue, UL/CSA/CE approved |
| Long Description: | IEC Plug 60A 4P5W 3phase-Y 120/208V Clock Position Of Grounding Contact 9 hour Color code Blue, UL/CSA approved and CE compliant |
| |
| EAN: | 7392696019330 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 98 mm |
| Product Net Height: | 98 mm |
| Product Net Weight: | 0.720 kg |
| |
| Package Level 1 Width: | 114 mm |
| Package Level 1 Depth / Length: | 114 mm |
| Package Level 1 Height: | 230 mm |
| Package Level 1 Gross Weight: | 0.720 kg |
| Package Level 1 EAN: | 7392696019330 |
| Package Level 1 Units: | box 1 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CSA Certificate: | 2CHC660174X0201 |
| Declaration of Conformity - CE: | 2CMC700005D0022 |
| RoHS Information: | 2CMC700005D0022 |
| UL Certificate: | E109550-19950105 |
| |
| Additional Information: | 3P+N+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Diameter: | 17 ... 35 mm |
| Color: | Blue |
| Connection Type: | Screw |
| Degree of Protection: | IP44 |
| Function: | Plug |
| Invoice Description: | Ind. P&S#ABB560P9 |
| Number of Poles: | 5 |
| Product Main Type: | TP |
| Product Name: | Industrial plug |
| Rated Voltage (Ur): | 120/208 V |
| Standards: | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700041M0005 |
| Installation Manual: | 2CMC700041M0005 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| Wire Size: | 8 ... 4 AWG |
| Tightening Torque: | WireClamp3.5 N·m |
