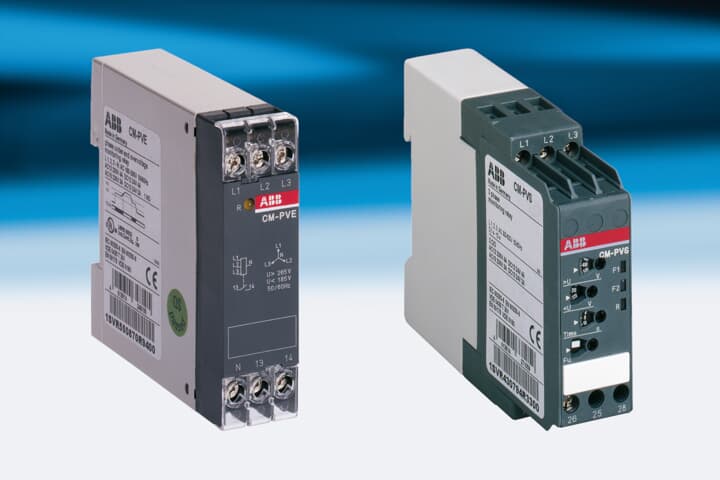

CM-PVS.41 Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x300-500VAC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-PVS.41 |
| Product ID: | 1SVR630794R3300 |
| EAN: | 4013614397639 |
| Catalog Description: | CM-PVS.41 Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x300-500VAC |
| Long Description: | The CM-PVS.41 relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 300-500 V AC and has a 2 c/o output with contacts rated at 250 V / 4 A. The CM-PVS.41 monitors the phase parameters over/undervoltage and phase failure. The corresponding threshold values are adjustable. Phase sequence monitoring as well as an ON or OFF tripping delay are selectable. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Replacement Product ID (NEW): | 1SVR730794R3300 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC112130D0202 |
| Instructions and Manuals: | 1SVC630511M0000 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Depth / Length: | 100 mm |
| Product Net Height: | 78 mm |
| Product Net Weight: | 0.124 kg |
| |
| Function: | Phase failure detection |
| Phase sequence monitoring | |
| Over- and undervoltage monitoring | |
| Standards: | IEC/EN 60255-6 |
| EN 50178 | |
| Measuring Range: | 3x300 ... 500 V AC |
| Rated Control Supply Voltage (Us): | 3 x 300 ... 500 V AC |
| Output: | 2 c/o (SPDT) contacts |
| Time Range: | 200 ms start-up delay |
| 0 s or 0.1 ... 30 s tripping delay (ON or OFF) | |
| Terminal Type: | Screw Terminals |
| |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| |
| CCC Certificate: | CCC_2009010303326655 |
| cUL Certificate: | cUL508_E140448 |
| Declaration of Conformity - CE: | 1SAD938501-0133 |
| Environmental Information: | 1SAA981003-2403 |
| GL Certificate: | GL_60286-09HH |
| Instructions and Manuals: | 1SVC630511M0000 |
| RoHS Information: | 1SAA981030-4404 |
| UL Certificate: | UL508_E140448 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 81 mm |
| Package Level 1 Height: | 106 mm |
| Package Level 1 Depth / Length: | 26 mm |
| Package Level 1 Gross Weight: | 0.147 kg |
| Package Level 1 EAN: | 4013614397639 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC001441 - Phase monitoring relay |
| ETIM 5: | EC001441 - Phase monitoring relay |
| ETIM 6: | EC001441 - Phase monitoring relay |
| ETIM 7: | EC001441 - Phase monitoring relay |
| eClass: | V11.0 : 27371803 |
| UNSPSC: | 39121536 |
