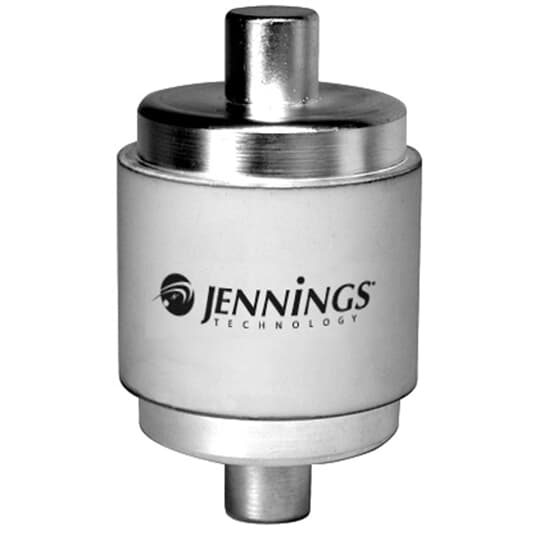

Article: CKT-100-0035
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CKT-100-0035 |
| Product ID: | 7TAA221100R0010 |
| EAN: | 0783786837915 |
| Catalog Description: | FIXED CAPACITOR 100PF 35KV |
| Long Description: | High Voltage Vacuum Fixed Capacitor - CKT Series, Mounting Using Flange FMOA on both Ends, Capacity Range 100PF, Voltage Peak Test 35kV Working 25kV |
| |
| EAN: | 0783786837915 |
| UPC: | 783786837915 |
| |
| Product Net Weight: | 1 lb |
| 453.515 g | |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 2 Units: | 1 piece |
| Package Level 2 Width: | 1 in |
| 25 mm | |
| Package Level 2 Height: | 1 in |
| 25 mm | |
| Package Level 2 Depth / Length: | 1 in |
| 25 mm | |
| Package Level 3 Units: | 1 piece |
| Package Level 3 Depth / Length: | 1 in |
| 25 mm | |
| |
| Application: | High Current Applications |
| Brand / Label: | Jennings |
| Capacitor Rating: | 100 pF |
| Current Rating: | 85 A |
| Material: | Ceramic |
| Mounting Type: | Use Flange FM0A on both Ends |
| Number of Batteries: | 0 |
| Product Name: | high voltage vac fixed capacitor |
| Product Type: | Vacuum Fixed Capacitor |
| Shaft Diameter: | 2.32 in |
| 58.93 mm | |
| Size: | Length 6.44 in ; 163.60 mm |
| Special Functions: | High Voltage Rating. High Current Rating. Wide Tuning Range. Low Losses. Self Healing. High Altitude Operation. |
| Temperature Range: | -55 to +125 °C |
| Voltage Rating: | 25 kV |
| |
| Data Sheet, Technical Information: | CKT-100-0035 |
| Instructions and Manuals: | CKT-100-0035 |
| |
| UNSPSC: | 32121513 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| IDEA Granular Category Code (IGCC): | 3055 >> Vacuum capacitor |
