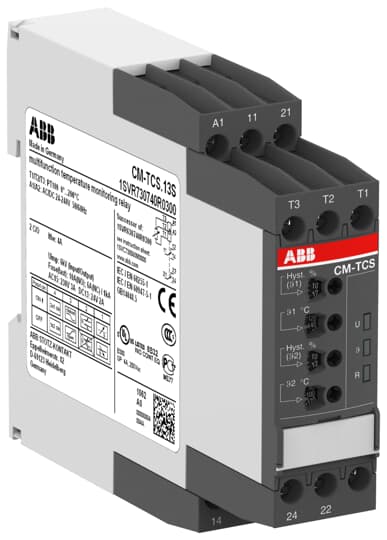

CM-TCS.13S Temperature monitoring relay Temp.-range 0...+200°C, 24-240VAC/DC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-TCS.13S |
| Product ID: | 1SVR730740R0300 |
| EAN: | 4016779852739 |
| Catalog Description: | CM-TCS.13S Temperature monitoring relay Temp.-range 0...+200°C, 24-240VAC/DC |
| Long Description: | Temperature monitoring relay CM-TCS.13S: temperature range 0..+200°C, width 25 mm, adjustable by potentiometer, 1 temperature sensor, 2 thresholds, overtemperature, undertemperature, window monitoring, rated control supply voltage 24-240 V AC / DC, 2 c/o, screw connection terminals |
| |
| EAN: | 4016779852739 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC112199D0201 |
| Instructions and Manuals: | 1SVC730560M0000 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Depth / Length: | 103.7 mm |
| Product Net Height: | 85.6 mm |
| Product Net Weight: | 0.151 kg |
| |
| Function: | Overtemperature monitoring |
| Undertemperature monitoring | |
| Over- and undertemperature monitoring | |
| 1 sensor circuit | |
| Short-circuit detection | |
| Measuring Range: | 0 ... +200 °C |
| Sensor Type: | PT100 |
| Rated Control Supply Voltage (Us): | 24 ... 240 V AC/DC |
| Rated Frequency (f): | Supply Circuit 50 Hz |
| Supply Circuit 60 Hz | |
| Supply Circuit DC | |
| Output: | 2 x 1 c/o or 1 x 2 c/o contacts, configurable |
| Terminal Type: | Screw Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Minimum Switching Capacity: | 24 V |
| 10 mA | |
| Rated Impulse Withstand Voltage (Uimp): | Measuring Circuit / Output Circuit 4 kV |
| Output Circuit 1 / Output Circuit 2 4 kV | |
| Supply Circuit / Measuring Circuit 4 kV | |
| Supply Circuit / Output Circuit 4 kV | |
| Rated Insulation Voltage (Ui): | Measuring Circuit / Output Circuit 300 V |
| Output Circuit 1 / Output Circuit 2 300 V | |
| Supply Circuit / Measuring Circuit 300 V | |
| Supply Circuit / Output Circuit 300 V | |
| Degree of Protection: | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category: | III |
| Pollution Degree: | 3 |
| Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 6 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Electrical Durability: | AC-12 100000 cycle |
| Mechanical Durability: | 30000000 cycle |
| Connecting Capacity: | Flexible with Ferrule 1x 0.5 ... 2.5 mm² |
| Flexible with Ferrule 2x 0.5 ... 1.5 mm² | |
| Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | |
| Flexible 1x 0.5 ... 2.5 mm² | |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 2.5 mm² | |
| Tightening Torque: | 0.6 ... 0.8 N·m |
| Wire Stripping Length: | 8 mm |
| Mounting Position: | Any |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards: | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 60255-27 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-3 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
| Contact Rating UL/CSA: | B300 |
| Connecting Capacity UL/CSA: | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-14 AWG | |
| Tightening Torque UL/CSA: | 7.08 in·lb |
| |
| Ambient Air Temperature: | Operation -40 ... +60 °C |
| Storage -40 ... +85 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CCC Certificate: | CCC_2018010303056014 |
| CQC Certificate: | CQC2007010303243843 |
| cULus Certificate: | cULus508_20170922-E140448 |
| Data Sheet, Technical Information: | 2CDC112199D0201 |
| Declaration of Conformity - CCC: | 2020980303000196 |
| Declaration of Conformity - CE: | 1SVD981015-00 |
| Declaration of Conformity - UKCA: | 1SVD981015-10 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.03424 |
| Instructions and Manuals: | 1SVC730560M0000 |
| RoHS Information: | 1SVD981015-00 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Depth / Length: | 30 mm |
| Package Level 1 Gross Weight: | 0.176 kg |
| Package Level 1 EAN: | 4016779852739 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC001446 - Temperature monitoring relay |
| ETIM 5: | EC001446 - Temperature monitoring relay |
| ETIM 6: | EC001446 - Temperature monitoring relay |
| ETIM 7: | EC001446 - Temperature monitoring relay |
| eClass: | V11.0 : 27371810 |
| E-Number (Finland): | 2712326 |
| E-Number (Sweden): | 3860665 |
