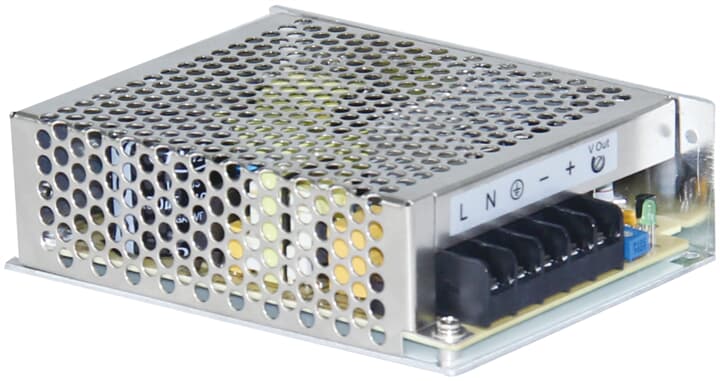

CP-PX 24/3.2 Power supply Out:DC 24V/3.2A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CP-PX 24/3.2 |
| Product ID: | 1SVR427091R0030 |
| EAN: | 4016779010832 |
| Catalog Description: | CP-PX 24/3.2 Power supply Out:DC 24V/3.2A |
| Long Description: | The CP-PX 24/3.2 is a power supply from the CP-PX range. The primary switch mode power supply offers a wide range input of 90-264 V AC, rated input voltage is 100-240 V AC. The rated output power is 75 W, rated output current is 3.2 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 21.6 to 26.4 V DC. The output characteristic is hiccup-mode. The power supply allows parallel operation to enable redundancy. A redundancy unit is available as accessory. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SXF110017D2001 |
| Instructions and Manuals: | 1SXF110010M2001 |
| |
| Product Net Width: | 37.5 mm |
| Product Net Height: | 97.9 mm |
| Product Net Depth / Length: | 129 mm |
| Product Net Weight: | 0.41 kg |
| |
| Package Level 1 Width: | 132 mm |
| Package Level 1 Depth / Length: | 38 mm |
| Package Level 1 Height: | 99 mm |
| Package Level 1 Gross Weight: | 0.42 kg |
| Package Level 1 EAN: | 4016779010832 |
| Package Level 1 Units: | box 1 piece |
| |
| Function: | Switch mode power supply |
| Number of Phases: | 1 |
| Rated Input Voltage (UIN): | 100 ... 240 V AC |
| Input Voltage (Uin): | 90 ... 264 V AC |
| Hold-up Time: | (230 V AC) min. 20 ms |
| Rated Frequency (f): | 50 Hz |
| 60 Hz | |
| Rated Frequency Limits: | 47 ... 63 Hz |
| Characteristic of Output: | Hiccup-mode |
| Rated Output Power: | 75 W |
| Output Power: | 75 W |
| Rated Output Voltage: | 24 V DC |
| Output Voltage (Uout): | 24 V DC |
| Rated Output Current: | -20 °C ... +50 °C 3.2 A |
| Output Current: | 3.2 A |
| Output Current Maximum (Iout): | 3.2 A |
| Rated Impulse Withstand Voltage (Uimp): | Input Circuit / Output Circuit 1.5 kV |
| Input Circuit / PE 1.5 kV | |
| Degree of Protection: | Housing IP20 |
| Pollution Degree: | 2 |
| Connecting Capacity Input Circuit: | Rigid 0.3 ... 4 mm² |
| Connecting Capacity Output Circuit: | Rigid 0.3 ... 4 mm² |
| Tightening Torque: | Input Circuit 1.2 N·m |
| Output Circuit 1.2 N·m | |
| Wire Stripping Length: | Input Circuit 10 mm |
| Output Circuit 10 mm | |
| Minimum Mounting Distance: | Other Device Same Type, Horizontal 25 mm |
| Other Device Same Type, Vertical 25 mm | |
| Mounting on DIN Rail: | No |
| Standards: | EN 50581 |
| EN 55024 | |
| EN 55032 | |
| IEC/EN 60950-1 | |
| |
| Ambient Air Temperature: | Operation -20 ... +70 °C |
| Storage -40 ... +85 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SVD982024 |
| Instructions and Manuals: | 1SXF110010M2001 |
| RoHS Information: | 1SVD982024 |
| |
| Object Classification Code: | T |
| ETIM 5: | EC002540 - DC-power supply |
| ETIM 6: | EC002540 - DC-power supply |
| ETIM 7: | EC002540 - DC-power supply |
| eClass: | V11.0 : 27040701 |
| UNSPSC: | 39121004 |
