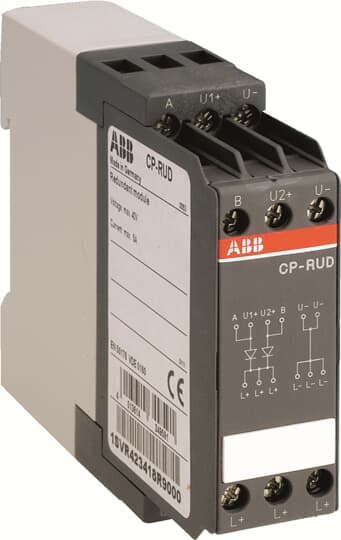

Article: CP-RUD
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CP-RUD |
| Product ID: | 1SVR423418R9000 |
| EAN: | 4013614349591 |
| Catalog Description: | CP-RUD Redundancy unit, up to 5A |
| Long Description: | The CP-RUD is a redundancy unit for CP-E range power supplies. This module, with 2 inputs each up to 2.5 A and an output up to 5 A, provides decoupling of two CP-E range power supplies with an output < 35 V. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044082 |
| Replacement Product ID (NEW): | 1SVR427049R0000 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC114032D0201 |
| Instructions and Manuals: | 2CDC114032D0201 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 78 mm |
| Product Net Depth / Length: | 100 mm |
| Product Net Weight: | 0.118 kg |
| |
| Package Level 1 Width: | 106 mm |
| Package Level 1 Depth / Length: | 81 mm |
| Package Level 1 Height: | 26 mm |
| Package Level 1 Gross Weight: | 0.132 kg |
| Package Level 1 EAN: | 4013614349591 |
| Package Level 1 Units: | box 1 piece |
| |
| Function: | Redundancy unit |
| Input Voltage (Uin): | 5 ... 35 V DC |
| Output Voltage (Uout): | 24 V DC |
| Output Current: | 5 A |
| Degree of Protection: | Housing IP20 |
| Terminals IP20 | |
| Standards: | IEC 60950-1 |
| |
| Ambient Air Temperature: | Operation -20 ... +60 °C |
| Storage -40 ... +85 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SVD982030-00 |
| Instructions and Manuals: | 2CDC114032D0201 |
| RoHS Information: | 1SVD981001-4400 |
| |
| Object Classification Code: | T |
| ETIM 4: | EC002540 - DC-power supply |
| ETIM 5: | EC002540 - DC-power supply |
| ETIM 6: | EC002540 - DC-power supply |
| ETIM 7: | EC002540 - DC-power supply |
| eClass: | V11.0 : 27040701 |
| UNSPSC: | 39121004 |
| E-Number (Sweden): | 5213013 |
