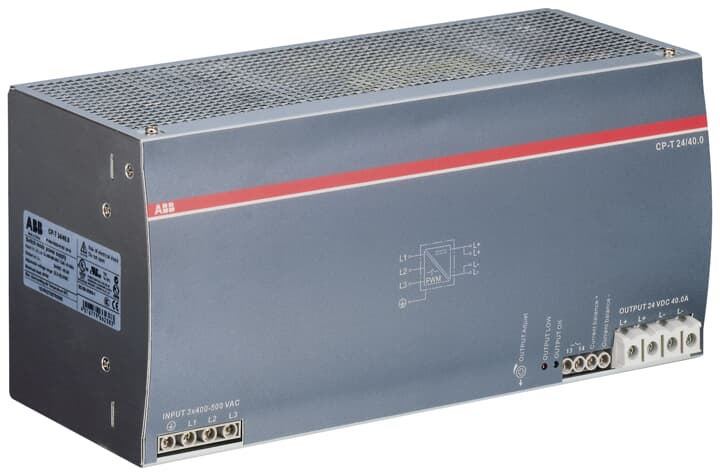

CP-T 24/40.0 Power supply In: 3x400-500VAC Out: 24VDC/40.0A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CP-T 24/40.0 |
| Product ID: | 1SVR427057R0000 |
| EAN: | 4016779662383 |
| Catalog Description: | CP-T 24/40.0 Power supply In: 3x400-500VAC Out: 24VDC/40.0A |
| Long Description: | CP-T 24/40.0 Power supply In: 3x400-500VAC Out: 24VDC/40.0A |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC114070D0201 |
| Instructions and Manuals: | 1SVC427052M0000 |
| |
| Product Net Width: | 276 mm |
| Product Net Height: | 131 mm |
| Product Net Depth / Length: | 121 mm |
| Product Net Weight: | 3.275 kg |
| |
| Package Level 1 Width: | 170 mm |
| Package Level 1 Depth / Length: | 342 mm |
| Package Level 1 Height: | 165 mm |
| Package Level 1 Gross Weight: | 3.8 kg |
| Package Level 1 EAN: | 4016779662383 |
| Package Level 1 Units: | box 1 piece |
| |
| Function: | Switch mode power supply |
| Number of Phases: | 3 |
| Rated Input Voltage (UIN): | 3x 400 ... 500 V AC |
| Input Voltage (Uin): | 3 x 340 ... 575 V AC |
| 480 ... 820 V DC | |
| Rated Frequency Limits: | 47 ... 63 Hz |
| Characteristic of Output: | Hiccup-mode |
| Rated Output Power: | 960 W |
| Output Power: | 960 W |
| Rated Output Voltage: | 24 V DC |
| Output Voltage (Uout): | 24 V DC |
| Rated Output Current: | 40 A |
| Output Current: | 40 A |
| Degree of Protection: | Housing IP20 |
| Terminals IP20 | |
| Pollution Degree: | 2 |
| Connecting Capacity Input Circuit: | Flexible with Ferrule 0.2 ... 4 mm² |
| Rigid 0.2 ... 6 mm² | |
| Connecting Capacity Output Circuit: | Flexible with Ferrule 0.5 ... 10 mm² |
| Rigid 0.5 ... 16 mm² | |
| Tightening Torque: | Auxiliary Circuit 0.6 N·m |
| Input Circuit 1 N·m | |
| Output Circuit 1.8 N·m | |
| Wire Stripping Length: | Auxiliary Circuit 8 mm |
| Input Circuit 8 mm | |
| Output Circuit 10 mm | |
| Minimum Mounting Distance: | Electrical Conductive Board, Horizontal 25 mm |
| Electrical Conductive Board, Vertical 25 mm | |
| Other Device Same Type, Horizontal 25 mm | |
| Other Device Same Type, Vertical 25 mm | |
| Mounting Position: | Position 1 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards: | ANSI/ISA-12.12 |
| CAN/CSA C22.2 No.107.1 | |
| CAN/CSA C22.2 No.213 | |
| CAN/CSA C22.2 No.60950 | |
| IEC/EN 63000 | |
| IEC 60950-1 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-3 | |
| UL 508 | |
| UL 60950 | |
| |
| Ambient Air Temperature: | Operation -40 ... +70 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible: | 5000 m |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Technical UL/CSA | |
| Connecting Capacity Input Circuit UL/CSA: | Rigid 24-10 AWG |
| Connecting Capacity Output Circuit UL/CSA: | Rigid 20-6 AWG |
| Tightening Torque UL/CSA: | Input Circuit 9 in·lb |
| Output Circuit 15.6 in·lb | |
| Electromagnetic Compatibility | |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2: | Level 4 Air Discharge 15 kV |
| Level 4 Contact Discharge 8 kV | |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3: | Level 3 10 V/m |
| Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4: | Level 4 Power Supply Port Signal 4 kV |
| Surge Immunity acc. to IEC 61000-4-5: | Level 3 Line-to-Line 2 kV |
| Level 4 Line-to-Line 4 kV | |
| Conducted Disturbances Immunity acc. to IEC 61000-4-6: | Level 3 10 V |
| Electromagnetic Compatibility (EMC): | Immunity - Class B |
| Emission - Environment B | |
| |
| cUL Certificate: | cUL508_E174460 |
| cUR Certificate: | cUR60950_E196145 |
| cUR_ANSI_E317914 | |
| Declaration of Conformity - CE: | 1SVD982036-00 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.00768_20 |
| Instructions and Manuals: | 1SVC427052M0000 |
| RoHS Information: | 1SVD982036 |
| UL Certificate: | UL508_E174460 |
| UR Certificate: | UR60950_E196145 |
| UR_ANSI_E317914 | |
| |
| Object Classification Code: | T |
| ETIM 4: | EC002540 - DC-power supply |
| ETIM 5: | EC002540 - DC-power supply |
| ETIM 6: | EC002540 - DC-power supply |
| ETIM 7: | EC002540 - DC-power supply |
| eClass: | V11.0 : 27040701 |
| UNSPSC: | 39121004 |
| E-Number (Finland): | 2712075 |
| E-Number (Sweden): | 5218723 |
