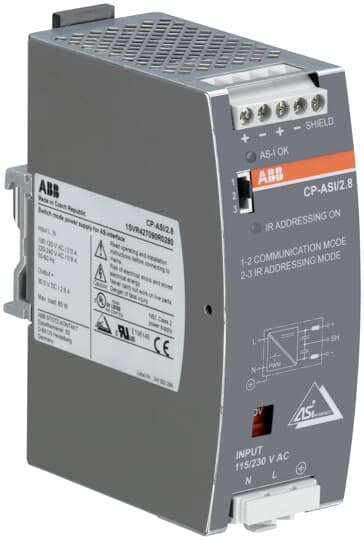

CP-ASI/2.8 Power supply In: 115/230VAC Out: 30.5VDC/2.8A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CP-ASI/2.8 |
| Product ID: | 1SVR427090R0280 |
| EAN: | 4016779916165 |
| Catalog Description: | CP-ASI/2.8 Power supply In: 115/230VAC Out: 30.5VDC/2.8A |
| Long Description: | CP-ASI/2.8 Power supply In: 115/230VAC Out: 30.5VDC/2.8A |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SVC114001D0200 |
| Instructions and Manuals: | 1SVC427090M0000 |
| |
| Product Net Width: | 49 mm |
| Product Net Height: | 132 mm |
| Product Net Depth / Length: | 107 mm |
| Product Net Weight: | 0.495 kg |
| |
| Package Level 1 Width: | 151 mm |
| Package Level 1 Depth / Length: | 140 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Gross Weight: | 0.568 kg |
| Package Level 1 EAN: | 4016779916165 |
| Package Level 1 Units: | 1 piece |
| |
| Function: | Switch mode power supply for AS-Interface |
| Number of Phases: | 1 |
| Input Voltage (Uin): | 85 ... 132 V AC |
| 184 ... 264 V AC | |
| Output Power: | 85 W |
| Output Voltage (Uout): | 30.5 V DC |
| Output Current: | 2.8 A |
| Degree of Protection: | Housing IP20 |
| Terminals IP20 | |
| Standards: | CAN/CSA C22.2 No.107.1 |
| CAN/CSA C22.2 No.60950 | |
| IEC/EN 63000 | |
| IEC 60950-1 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-3 | |
| UL 508 | |
| UL 60950 | |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| ASI Certificate: | ASI_ZU-NR.97401 |
| cUL Certificate: | cUL508_E174460 |
| cUR Certificate: | cUR60950_E196145 |
| Declaration of Conformity - CE: | 1SVD982012 |
| Environmental Information: | 1SAA981022-2401 |
| Instructions and Manuals: | 1SVC427090M0000 |
| RoHS Information: | 1SVD982012-0001 |
| UL Certificate: | UL508_E174460 |
| UR Certificate: | UR60950_E196145 |
| |
| Object Classification Code: | T |
| ETIM 4: | EC002540 - DC-power supply |
| ETIM 5: | EC002540 - DC-power supply |
| ETIM 6: | EC002540 - DC-power supply |
| ETIM 7: | EC002540 - DC-power supply |
| eClass: | V11.0 : 27040701 |
| UNSPSC: | 39121004 |
| E-Number (Sweden): | 5240037 |
