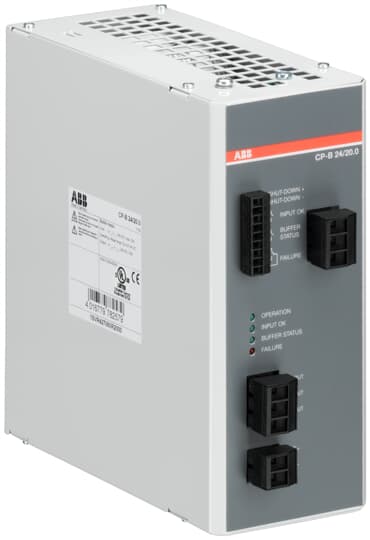

CP-B 24/20.0 Buffer module 24 V / 20 A, energy storage 8000 Ws
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CP-B 24/20.0 |
| Product ID: | 1SVR427060R2000 |
| EAN: | 4016779782579 |
| Catalog Description: | CP-B 24/20.0 Buffer module 24 V / 20 A, energy storage 8000 Ws |
| Long Description: | CP-B 24/20.0 Buffer module 24 V / 20 A, energy storage 8000 Ws |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044082 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC114081D0201 |
| Instructions and Manuals: | 1SVC427062M0000 |
| |
| Product Net Width: | 84 mm |
| Product Net Height: | 198 mm |
| Product Net Depth / Length: | 216 mm |
| Product Net Weight: | 2.2 kg |
| |
| Package Level 1 Width: | 320 mm |
| Package Level 1 Depth / Length: | 335 mm |
| Package Level 1 Height: | 150 mm |
| Package Level 1 Gross Weight: | 3 kg |
| Package Level 1 EAN: | 4016779782579 |
| Package Level 1 Units: | box 1 piece |
| |
| Function: | Buffer module |
| Number of Phases: | 1 |
| Input Voltage (Uin): | 24 V DC |
| Output Power: | 480 W |
| Output Voltage (Uout): | 24 V DC |
| Output Current: | 20 A |
| Degree of Protection: | Housing IP20 |
| Terminals IP20 | |
| Pollution Degree: | 2 |
| Minimum Mounting Distance: | Other Device Same Type, Vertical 80 mm |
| Mounting Position: | Position 1 |
| Standards: | CAN/CSA C22.2 No.107.1 |
| IEC/EN 63000 | |
| EN 55011 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-4 | |
| IEC/EN 62040-2 | |
| UL 508 | |
| |
| Ambient Air Temperature: | Operation -40 ... +60 °C |
| Storage -40 ... +60 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| cUL Certificate: | cUL508_E174460 |
| Declaration of Conformity - CE: | 1SVD982014 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.00251_19 |
| Environmental Information: | 1SAA981014-2401 |
| Instructions and Manuals: | 1SVC427062M0000 |
| RoHS Information: | 1SVD982014 |
| UL Certificate: | UL508_E174460 |
| |
| Object Classification Code: | C |
| ETIM 4: | EC002540 - DC-power supply |
| ETIM 5: | EC002540 - DC-power supply |
| ETIM 6: | EC002540 - DC-power supply |
| ETIM 7: | EC002540 - DC-power supply |
| eClass: | V11.0 : 27040701 |
| UNSPSC: | 39121004 |
| E-Number (Finland): | 2712389 |
