Article: CL-LDC.SDC2
Article: CL-LDC.SDC2
CL-LDC.SDC2 Remote display connection m. 5m, length adaptable, 24VDC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CL-LDC.SDC2 |
| Product ID: | 1SVR440841R0000 |
| EAN: | 4013614389863 |
| Catalog Description: | CL-LDC.SDC2 Remote display connection m. 5m, length adaptable, 24VDC |

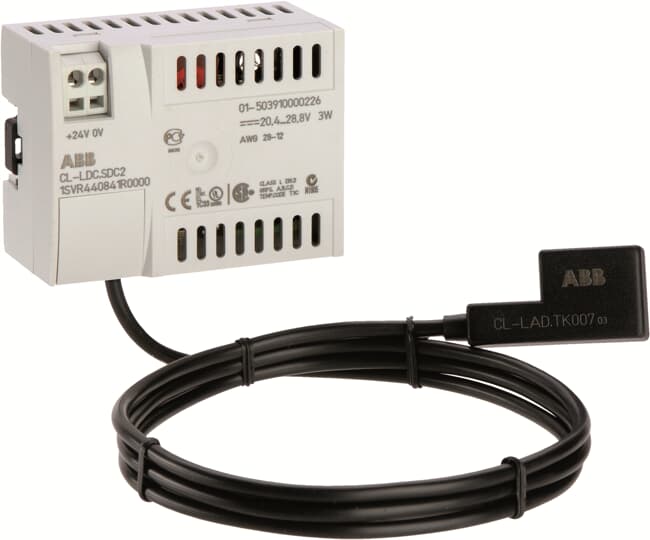

| Long Description: | The CL-LDC.SDC2 is a remote display connection module from the CL range. It is suitable to displace the display from the logic relay and operates with an input voltage of 24 V DC. The package includes the connecting cable CL-LAD.TK007 with a length of 5 m. The length is adaptable. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362010 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_05 |
| Instructions and Manuals: | 1SVC440796M5000 |
| |
| Product Net Width: | 75 mm |
| Product Net Depth / Length: | 36.2 mm |
| Product Net Height: | 58 mm |
| Product Net Weight: | 0.164 kg |
| |
| Function: | Remote display |
| Sub-Function: | Connection module |
| Rated Operational Voltage: | 24 V DC |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CSA Certificate: | CSA_1875990 |
| Declaration of Conformity - CE: | 1SVD982004-0001 |
| EAC Certificate: | EAC_RU_C-DE.AB72.B.01802 |
| Environmental Information: | 1SAA981012-2401 |
| Instructions and Manuals: | 1SVC440796M5000 |
| RoHS Information: | 1SVD982004-0001 |
| UL Certificate: | UL_E179811 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 112 mm |
| Package Level 1 Height: | 84 mm |
| Package Level 1 Depth / Length: | 94 mm |
| Package Level 1 Gross Weight: | 0.224 kg |
| Package Level 1 EAN: | 4013614389863 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001417 - Logic module |
| ETIM 5: | EC001417 - Logic module |
| ETIM 6: | EC001417 - Logic module |
| ETIM 7: | EC001417 - Logic module |
| eClass: | V11.0 : 27242216 |
