Article: CP-C.1 24/10.0

Article: CP-C.1 24/10.0

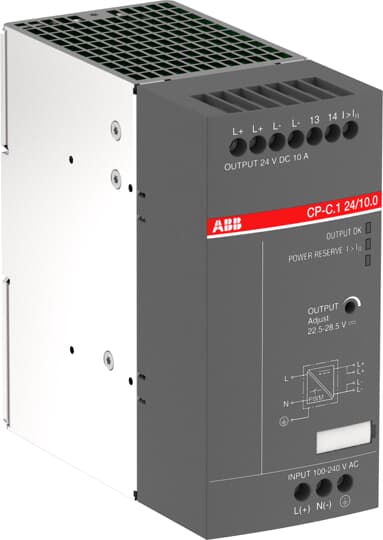

CP-C.1 24/10.0 Power supply In:100-240VAC/90-300VDC Out:DC 24V/10A
We find the right product for you
info@quadindustry.com
+49 (2191) 5992017
Official reseller
Expert engineering support

Configuration













































General Information
Extended Product Type: CP-C.1 24/10.0
Product ID: 1SVR360663R1001
EAN: 4013614503825
Catalog Description: CP-C.1 24/10.0 Power supply In:100-240VAC/90-300VDC Out:DC 24V/10A
Long Description: The CP-C.1 24/10.0 is a power supply from the CP-C.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 240 W, rated output current is 10 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 50 % and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.

Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85044090
Popular Downloads
Data Sheet, Technical Information: 2CDC114100D0201
Instructions and Manuals: 1SVC360560M0000

Dimensions
Product Net Width: 60 mm
Product Net Height: 129.4 mm
Product Net Depth / Length: 136 mm
Product Net Weight: 1.07 kg

Container Information
Package Level 1 Width: 90 mm
Package Level 1 Depth / Length: 168 mm
Package Level 1 Height: 160 mm
Package Level 1 Gross Weight: 1.21 kg
Package Level 1 EAN: 4013614503825
Package Level 1 Units: box 1 piece

Technical
Function: Switch mode power supply
Number of Phases: 1
Rated Input Voltage (UIN): 100 ... 240 V AC
90 ... 300 V DC
Input Voltage (Uin): 85 ... 264 V AC
90 ... 300 V DC
Typical Input Current: (115 V AC) 2.3 A
(230 V AC) 1.2 A
Hold-up Time: (230 V AC) min. 40 ms
Rated Frequency (f): 50 Hz
60 Hz
Rated Frequency Limits: 45 ... 65 Hz
Characteristic of Output: U/I characteristic curve with power reserve
Rated Output Power: 240 W
Output Power: 240 W
Rated Output Voltage: 24 V DC
Output Voltage (Uout): 24 V DC
Rated Output Current: -25 °C ... +40 °C 15 A
-25 °C ... +60 °C 10 A
Output Current: 10 A
Output Current Maximum (Iout): 15 A
Rated Impulse Withstand Voltage (Uimp): Input Circuit / Output Circuit 4 kV
Input Circuit / PE 4 kV
Input Circuit / Relay Contact 4 kV
Output Circuit / PE 0.5 kV
Output Circuit 0.5 kV
Rated Insulation Voltage (Ui): Input Circuit / Output Circuit 300 V
Input Circuit / PE 300 V
Input Circuit / Relay Contact 300 V
Output Circuit / PE 50 V
Degree of Protection: Housing IP20
Terminals IP20
Pollution Degree: 2
Connecting Capacity Input Circuit: Flexible with Ferrule 0.5 ... 2.5 mm²
Flexible 0.5 ... 2.5 mm²
Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit: Flexible with Ferrule 0.5 ... 2.5 mm²
Flexible 0.5 ... 2.5 mm²
Rigid 0.5 ... 4 mm²
Tightening Torque: Auxiliary Circuit 0.5 N·m
Control Circuit 0.9 N·m
Input Circuit 0.5 N·m
Output Circuit 0.5 N·m
Wire Stripping Length: Auxiliary Circuit 8 mm
Input Circuit 8 mm
Output Circuit 8 mm
Recommended Screw Driver: Input Circuit / Output Circuit PH1
Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance: Electrical Conductive Board, Horizontal 25 mm
Electrical Conductive Board, Vertical 25 mm
Other Device Same Type, Horizontal 25 mm
Other Device Same Type, Vertical 25 mm
Mounting Position: Position 1, 7
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards: CAN/CSA C22.2 No.107.1
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61204
UL 508
IEC/EN 61010-1
UL 61010-1
UL 61010-2-201

Environmental
Ambient Air Temperature: Operation -25 ... +70 °C
Storage -40 ... +85 °C
Resistance to Vibrations acc. to IEC 60068-2-6: 10-58 Hz, ±0.15 mm; 58-150 Hz, 2g, 10 sweep cycles each axis
Resistance to Shock acc. to IEC 60068-2-27: 30g / 3 shocks / 6 ms
Resistance to Damp Heat acc. to IEC 60068-2-30: Test Db: 55°C, 2 cycles
RoHS Status: Following EU Directive 2011/65/EU
Technical UL/CSA
Connecting Capacity Input Circuit UL/CSA: Flexible with Ferrule 20-12 AWG
Flexible 20-12 AWG
Rigid 20-10 AWG
Connecting Capacity Output Circuit UL/CSA: Flexible 20-12 AWG
Rigid 20-10 AWG
Tightening Torque UL/CSA: Input Circuit 4.4 in·lb
Output Circuit 4.4 in·lb
Electromagnetic Compatibility
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2: Level 4 Air Discharge 15 kV
Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3: Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4: Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5: Level 4 Line-to-Ground 4 kV
Level 4 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6: Level 3 10 V
Electromagnetic Compatibility (EMC): Immunity - Class B
Emission - Class B

Certificates and Declarations (Document Number)
ABS Certificate: ABS_17-HG1591548-2-PDA
CB Certificate: CB_DK-45679-A3-UL
cULus Certificate: cULus508_20150522-E174460
cURus Certificate: cURus60950_E196145-A9-UL
cURusANSI-12-12_20160916_E317914
Declaration of Conformity - CE: 1SVD982010-00
DNV GL Certificate: DNV_GL_TAA00000YB_1
EAC Certificate: EAC_RU_C-DE.ME77.B.02550
Instructions and Manuals: 1SVC360560M0000
RoHS Information: 1SVD982010

Classifications
Object Classification Code: T
ETIM 5: EC002540 - DC-power supply
ETIM 6: EC002540 - DC-power supply
ETIM 7: EC002540 - DC-power supply
eClass: V11.0 : 27040701
UNSPSC: 39121004
E-Number (Finland): 2712517
E-Number (Sweden): 5213180
