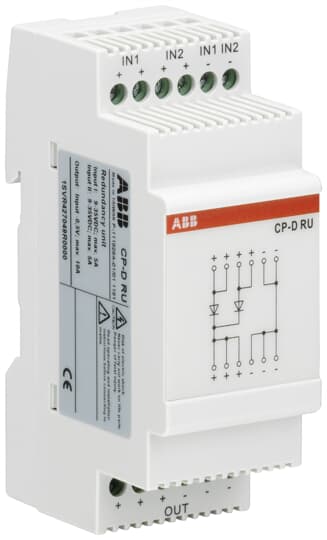

CP-D RU Redundancy unit for CP range power supplies, In: 2x5A, Out: 1x10A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CP-D RU |
| Product ID: | 1SVR427049R0000 |
| EAN: | 4016779845267 |
| Catalog Description: | CP-D RU Redundancy unit for CP range power supplies, In: 2x5A, Out: 1x10A |
| Long Description: | CP-D RU Redundancy unit for CP range power supplies, In: 2x5A, Out: 1x10A |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC114086D0201 |
| Instructions and Manuals: | 1SVC427044M0000 |
| |
| Product Net Width: | 35 mm |
| Product Net Height: | 91 mm |
| Product Net Depth / Length: | 56.5 mm |
| Product Net Weight: | 0.075 kg |
| |
| Package Level 1 Width: | 134 mm |
| Package Level 1 Depth / Length: | 48 mm |
| Package Level 1 Height: | 94 mm |
| Package Level 1 Gross Weight: | 0.13 kg |
| Package Level 1 EAN: | 4016779845267 |
| Package Level 1 Units: | box 1 piece |
| |
| Function: | Redundancy unit |
| Rated Input Voltage (UIN): | 24 V DC |
| Input Voltage (Uin): | 9 ... 35 V DC |
| Rated Output Voltage: | 24 V DC |
| Output Voltage (Uout): | 24 V DC |
| Rated Output Current: | 10 A |
| Output Current: | 10 A |
| Degree of Protection: | Housing IP20 |
| Terminals IP20 | |
| Connecting Capacity Input Circuit: | Flexible with Ferrule 0.2 ... 2.5 mm² |
| Rigid 0.2 ... 2.5 mm² | |
| Connecting Capacity Output Circuit: | Flexible with Ferrule 0.2 .... 2.5 mm² |
| Rigid 0.2 ... 2.5 mm² | |
| Tightening Torque: | Input Circuit 0.67 N·m |
| Output Circuit 0.5 N·m | |
| Wire Stripping Length: | Input Circuit 7 mm |
| Output Circuit 7 mm | |
| Minimum Mounting Distance: | Electrical Conductive Board, Horizontal 25 mm |
| Electrical Conductive Board, Vertical 25 mm | |
| Other Device Same Type, Horizontal 25 mm | |
| Other Device Same Type, Vertical 25 mm | |
| Mounting Position: | Position 1 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards: | IEC 60950-1 |
| |
| Ambient Air Temperature: | Operation -40 ... +70 °C |
| Storage -40 ... +85 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Technical UL/CSA | |
| Connecting Capacity Input Circuit UL/CSA: | Rigid 24-12 AWG |
| Connecting Capacity Output Circuit UL/CSA: | Rigid 24-12 AWG |
| Tightening Torque UL/CSA: | Input Circuit 6 in·lb |
| Output Circuit 6 in·lb | |
| |
| Declaration of Conformity - CE: | 1SVD982030-00 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.00799_20 |
| Instructions and Manuals: | 1SVC427044M0000 |
| RoHS Information: | 1SVD982030 |
| |
| Object Classification Code: | T |
| ETIM 4: | EC002540 - DC-power supply |
| ETIM 5: | EC002540 - DC-power supply |
| ETIM 6: | EC002540 - DC-power supply |
| ETIM 7: | EC002540 - DC-power supply |
| eClass: | V11.0 : 27040701 |
| UNSPSC: | 39121004 |
| E-Number (Sweden): | 5218731 |
