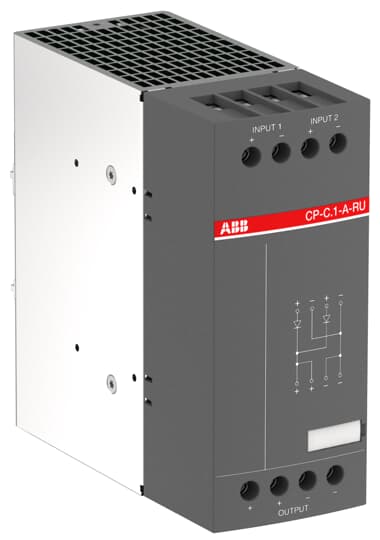

CP-C.1-A-RU-C Redundancy unit for power supplies In: 2x20A, Out: 1x40A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CP-C.1-A-RU-C |
| Product ID: | 1SVR360060R2001 |
| EAN: | 4013614523748 |
| Catalog Description: | CP-C.1-A-RU-C Redundancy unit for power supplies In: 2x20A, Out: 1x40A |
| Long Description: | The CP-C.1-A-RU-C is a redundancy unit for CP-C.1 range power supplies. This unit, with 2 inputs / channels each up to 20 A and an output up to 40 A, provides true redundancy by 100 % decoupling of two parallel connected CP-C.1 range power supplies. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044082 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC114103D0201 |
| Instructions and Manuals: | 1SVC360561M0000 |
| Instructions and Manuals (Part 2): | 1SVC360560M9000 |
| |
| Product Net Width: | 56.4 mm |
| Product Net Height: | 129.4 mm |
| Product Net Depth / Length: | 136 mm |
| Product Net Weight: | 1.04 kg |
| |
| Package Level 1 Width: | 90 mm |
| Package Level 1 Depth / Length: | 155 mm |
| Package Level 1 Height: | 165 mm |
| Package Level 1 Gross Weight: | 1.17 kg |
| Package Level 1 EAN: | 4013614523748 |
| Package Level 1 Units: | box 1 piece |
| |
| Function: | Redundancy unit |
| Rated Input Voltage (UIN): | 12 ... 48 V DC |
| Input Voltage (Uin): | 10 ... 58 V DC |
| Rated Output Voltage: | 12 ... 48 V DC |
| Output Voltage (Uout): | 10 ... 58 V DC |
| Rated Output Current: | 40 A |
| Output Current: | 60 A |
| Degree of Protection: | Housing IP20 |
| Terminals IP20 | |
| Pollution Degree: | 2 |
| Connecting Capacity Input Circuit: | Flexible with Ferrule 2.5 ... 10 mm² |
| Flexible 2.5 ... 10 mm² | |
| Rigid 2.5 ... 16 mm² | |
| Connecting Capacity Output Circuit: | Flexible with Ferrule 2.5 ... 10 mm² |
| Flexible 2.5 ... 10 mm² | |
| Rigid 2.5 ... 16 mm² | |
| Tightening Torque: | Input Circuit 1.2 N·m |
| Output Circuit 1.2 N·m | |
| Wire Stripping Length: | Input Circuit 10 mm |
| Output Circuit 10 mm | |
| Recommended Screw Driver: | Input Circuit / Output Circuit 0.8 x 4 |
| Input Circuit / Output Circuit PH1 | |
| Mounting Position: | Position 1, 7 |
| Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | |
| Standards: | IEC/EN 63000 |
| IEC/EN 60079-0 | |
| IEC/EN 60079-7 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-3 | |
| IEC/EN 61204 | |
| UL 61010-2-201 | |
| UL 61010-1 | |
| IEC/EN 61010-1 | |
| |
| Ambient Air Temperature: | Operation -40 ... +70 °C |
| Storage -40 ... +85 °C | |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 10-58 Hz, ±0.15 mm; 58-150 Hz, 2g, 10 sweep cycles each axis |
| Resistance to Shock acc. to IEC 60068-2-27: | 30g / 3 shocks / 6 ms |
| Resistance to Damp Heat acc. to IEC 60068-2-30: | Test Db: 55°C, 2 cycles |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Technical UL/CSA | |
| Connecting Capacity Input Circuit UL/CSA: | Flexible 12-8 AWG |
| Rigid 12-6 AWG | |
| Connecting Capacity Output Circuit UL/CSA: | Flexible 12-8 AWG |
| Rigid 12-6 AWG | |
| Electromagnetic Compatibility | |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2: | Level 4 Air Discharge 15 kV |
| Level 4 Contact Discharge 8 kV | |
| Electromagnetic Compatibility (EMC): | Immunity - Class B |
| Emission - Class B | |
| |
| ABS Certificate: | ABS_17-HG1661393-1-PDA |
| ATEX Certificate: | Type Examination Certificate_DEMKO_16_ATEX_1746X |
| CB Certificate: | CB_DK-65060-M1-UL |
| cULus Certificate: | cULus508_20170703-E174460 |
| cURus Certificate: | cURus60950_E196145-A12-UL |
| cURusANSI-12-12_20170825_E317914 | |
| Declaration of Conformity - CE: | 1SVD982029-00 |
| DNV GL Certificate: | DNV_GL_TAA00001C0_1 |
| IECEx Certificate: | IECEx_ULD_170031X |
| Instructions and Manuals: | 1SVC360561M0000 |
| Instructions and Manuals (Part 2): | 1SVC360560M9000 |
| RoHS Information: | 1SVD982029 |
| |
| Object Classification Code: | T |
| ETIM 5: | EC002540 - DC-power supply |
| ETIM 6: | EC002540 - DC-power supply |
| ETIM 7: | EC002540 - DC-power supply |
| eClass: | V11.0 : 27040701 |
| UNSPSC: | 39121004 |
| E-Number (Finland): | 2712559 |
