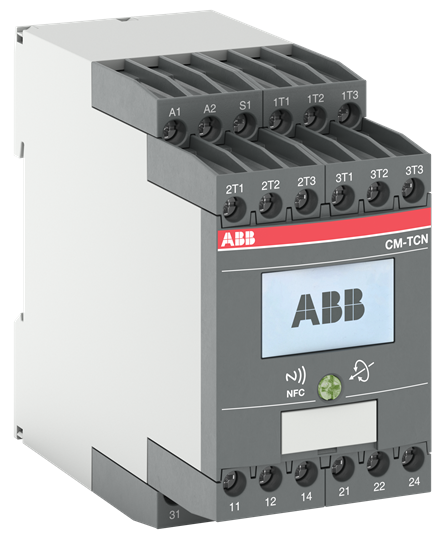

CM-TCN.011S Temp. monitoring relays LCD+NFC, -200..+850°C, 24VAC/DC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-TCN.011S |
| Product ID: | 1SVR750740R0110 |
| EAN: | 4013614552519 |
| Catalog Description: | CM-TCN.011S Temp. monitoring relays LCD+NFC, -200..+850°C, 24VAC/DC |
| Long Description: | Temperature monitoring relay CM-TCN.011S, Temp.-range -200..+850°C, width 45mm, digital adjustable, 3 threshholds, over temperature-, under temperature-, window monitoring, A1-A2=24 V AC / DC, 3 c/o, Screw connection terminals |
| |
| EAN: | 4013614552519 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC112286C0201 |
| Instructions and Manuals: | 1SVC750040M0001 |
| |
| Product Net Width: | 45 mm |
| Product Net Depth / Length: | 103.7 mm |
| Product Net Height: | 85.6 mm |
| Product Net Weight: | 0.265 kg |
| |
| Function: | Overtemperature monitoring |
| Undertemperature monitoring | |
| Over- and undertemperature monitoring | |
| Measuring Range: | -200 ... +850 °C |
| Sensor Type: | PT100; PT1000; PTC; NTC; bimetal switch |
| Rated Control Supply Voltage (Us): | 24 V AC/DC |
| Rated Frequency (f): | Supply Circuit 50 Hz |
| Supply Circuit 60 Hz | |
| Supply Circuit DC Hz | |
| Output: | 3 x 1 c/o contacts, configurable |
| Terminal Type: | Screw Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Minimum Switching Capacity: | 12 V |
| 100 mA | |
| Rated Impulse Withstand Voltage (Uimp): | Measuring Circuit / Output Circuit 6 kV |
| Output Circuit 1 / Output Circuit 2 4 kV | |
| Supply Circuit / Measuring Circuit 6 kV | |
| Supply Circuit / Output Circuit 6 kV | |
| Rated Insulation Voltage (Ui): | Measuring Circuit / Output Circuit 600 V |
| Output Circuit 1 / Output Circuit 2 300 V | |
| Supply Circuit / Measuring Circuit 600 V | |
| Supply Circuit / Output Circuit 600 V | |
| Degree of Protection: | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category: | III |
| Pollution Degree: | 2 |
| Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 6 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Electrical Durability: | AC-12 100000 cycle |
| Mechanical Durability: | 30000000 cycle |
| Connecting Capacity: | Flexible with Ferrule 1x 0.5 ... 2.5 mm² |
| Flexible with Ferrule 2x 0.5 ... 1.5 mm² | |
| Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | |
| Flexible 1x 0.5 ... 2.5 mm² | |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 2.5 mm² | |
| Tightening Torque: | 0.6 ... 0.8 N·m |
| Wire Stripping Length: | 8 mm |
| Recommended Screw Driver: | Pozidriv 1 |
| 4.5 | |
| 0.8 x 4 | |
| Mounting Position: | Any |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
| Contact Rating UL/CSA: | B300 |
| Connecting Capacity UL/CSA: | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-14 AWG | |
| Tightening Torque UL/CSA: | 7.08 in·lb |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +85 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CCC Certificate: | CCC_2018010303056014 |
| CQC Certificate: | CQC2018010303056014 |
| cULus Certificate: | cULus80947_E140448-20200622 |
| Data Sheet, Technical Information: | 2CDC112286C0201 |
| Declaration of Conformity - CCC: | 2020980303000208 |
| Declaration of Conformity - CE: | 1SVD981067 |
| Instructions and Manuals: | 1SVC750040M0001 |
| RoHS Information: | 1SVD981067-0001 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Depth / Length: | 52.5 mm |
| Package Level 1 Gross Weight: | 0.293 kg |
| Package Level 1 EAN: | 4013614552519 |
| |
| Object Classification Code: | B |
| ETIM 5: | EC001446 - Temperature monitoring relay |
| ETIM 6: | EC001446 - Temperature monitoring relay |
| ETIM 7: | EC001446 - Temperature monitoring relay |
| eClass: | V11.0 : 27371810 |
