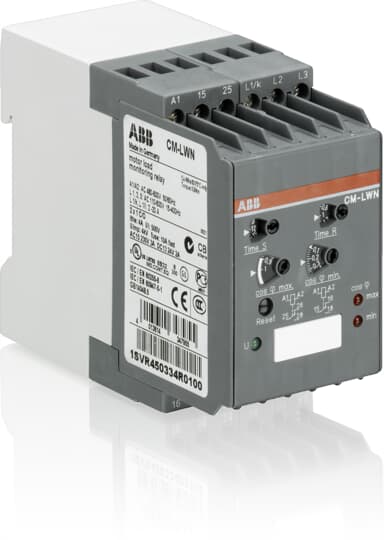

CM-LWN Motor load monitor, 2x1c/o L1-L2-L3=500VAC, L1/k-l=5A, 24-240VAC/DC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-LWN |
| Product ID: | 1SVR450335R0000 |
| EAN: | 4013614347962 |
| Catalog Description: | CM-LWN Motor load monitor, 2x1c/o L1-L2-L3=500VAC, L1/k-l=5A, 24-240VAC/DC |
| Long Description: | The CM-LWN relay is from the CM motor load monitors range. This relay operates with a rated control supply voltage of 24-240 V AC / DC, has a 2 x 1 c/o (SPDT) output with contacts rated at 250 V / 4 A and works according to the closed-circuit principle. Its measuring principle is based on the evaluation of the phase shift between the voltage and the current in one phase of single- or three-phase asynchronous motors (squirrel cage). The measuring circuit is designed for measuring voltages of 110-500 V AC and measuring currents of 0.5-5 A AC. The window (over- and underload) monitoring allows setting of two individual threshold values, one for maximum load and one for minimim load. The hysteresis is fixed at 4 ° related to the phase angle. The tripping delay is adjustable within a range of 0.2 to 2 s and the start-up delay within a range of 0.3 to 30 s. A sealable transparent cover for protection against unauthorized changes is available as accessory. |
| |
| EAN: | 4013614347962 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| |
| Product Net Width: | 45 mm |
| Product Net Height: | 78 mm |
| Product Net Depth / Length: | 100 mm |
| Product Net Weight: | 0.212 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 81 mm |
| Package Level 1 Height: | 106 mm |
| Package Level 1 Depth / Length: | 46 mm |
| Package Level 1 Gross Weight: | 0.238 kg |
| Package Level 1 EAN: | 4013614347962 |
| |
| Function: | Motor load monitoring |
| Measuring Range: | 0.5-5 A @ 110-500 V AC |
| Rated Control Supply Voltage (Us): | 24 ... 240 V AC/DC |
| Rated Frequency (f): | DC |
| 15 ... 400 Hz | |
| Output: | 2 x 1 c/o (SPDT) contact |
| Time Range: | 0.3 ... 30 s start-up delay |
| 0.2 ... 2 s tripping delay | |
| Terminal Type: | Screw Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | CB_DK-8882 |
| CCC Certificate: | CCC_2005010303165477 |
| CQC Certificate: | CQC2005010303165477 |
| cUL Certificate: | cUL508_E140448 |
| Data Sheet, Technical Information: | 2CDC110004C0209 |
| Declaration of Conformity - CCC: | 2020980303000195 |
| Declaration of Conformity - CE: | 1SVD981017-0001 |
| DNV GL Certificate: | DNVGL_TAA00002MC |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.01825 |
| Environmental Information: | 1SAA981003-2403 |
| GL Certificate: | GL_96663-95HH |
| Instructions and Manuals: | 1SVC450520M0000 |
| RMRS Certificate: | RMRS_1740020250 |
| RoHS Information: | 1SVD981017-0001 |
| UL Certificate: | UL508_E140448 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC002057 - Power relay |
| ETIM 5: | EC002057 - Power relay |
| ETIM 6: | EC002057 - Power relay |
| ETIM 7: | EC002057 - Power relay |
| eClass: | V11.0 : 27371016 |
| E-Number (Finland): | 3580822 |
