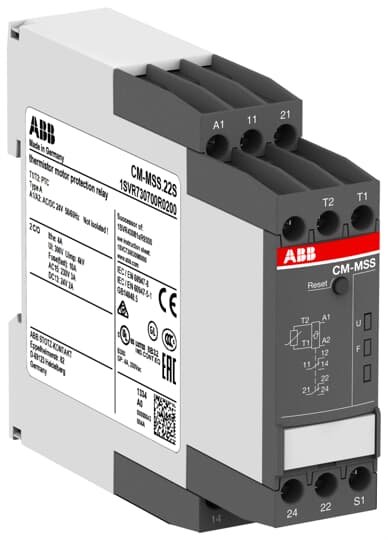

CM-MSS.22P Therm. motor protec. relay 2c/o, 24VAC/DC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-MSS.22P |
| Product ID: | 1SVR740700R0200 |
| EAN: | 4013614496608 |
| Catalog Description: | CM-MSS.22P Therm. motor protec. relay 2c/o, 24VAC/DC |
| Long Description: | The CM-MSS.22P belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 110-130 V AC and 220-240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay can be reset automatically, manually or remotely after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals. |
| |
| EAN: | 4013614496608 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 85.6 mm |
| Product Net Depth / Length: | 103.7 mm |
| Product Net Weight: | 0.121 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Depth / Length: | 30 mm |
| Package Level 1 Gross Weight: | 0.145 kg |
| Package Level 1 EAN: | 4013614496608 |
| |
| Function: | 1 sensor circuit |
| Auto, manual or remote reset | |
| Rated Control Supply Voltage (Us): | 24 V AC/DC |
| Output: | 2 c/o (SPDT) contacts |
| Terminal Type: | Screwless Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Minimum Switching Capacity: | 24 V |
| 10 mA | |
| Rated Insulation Voltage (Ui): | Measuring Circuit / Output Circuit 300 V |
| Output Circuit 1 / Output Circuit 2 300 V | |
| Supply Circuit / Output Circuit 300 V | |
| Rated Impulse Withstand Voltage (Uimp): | Output Circuit 1 / Output Circuit 2 4 kV |
| Output Circuit 4 kV | |
| Degree of Protection: | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category: | III |
| Pollution Degree: | 3 |
| Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 10 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Electrical Durability: | AC-12 100000 cycle |
| Mechanical Durability: | 30000000 cycle |
| Connecting Capacity: | Flexible 2x 0.5 ... 1.5 mm² |
| Rigid 2x 0.5 ... 1.5 mm² | |
| Wire Stripping Length: | 8 mm |
| Mounting Position: | Any |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards: | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 60947-5-1 | |
| IEC/EN 60947-8 | |
| UL 508 | |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +85 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
| Contact Rating UL/CSA: | B300 |
| Connecting Capacity UL/CSA: | Flexible 2x 18-16 AWG |
| Rigid 2x 20-16 AWG | |
| |
| CB Certificate: | CB_DK-40837-UL |
| CCC Certificate: | CCC_2005010303165479 |
| CQC Certificate: | CQC2005010303165479 |
| cULus Certificate: | cULus508_20140912-E140448 |
| Data Sheet, Technical Information: | 2CDC112220D0201 |
| Declaration of Conformity - CCC: | 2020980303000194 |
| Declaration of Conformity - CE: | 1SVD981006 |
| DNV GL Certificate: | DNVGL_TAE00003W4 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.01825 |
| Instructions and Manuals: | 1SVC730630M0000 |
| RMRS Certificate: | RMRS_1740020250 |
| RoHS Information: | 1SVD981006 |
| |
| Object Classification Code: | B |
| ETIM 5: | EC002568 - Temperature monitor (motor protection) |
| ETIM 6: | EC002568 - Relay for thermistor protection (PTC) |
| ETIM 7: | EC002568 - Relay for thermistor protection (PTC) |
| eClass: | V11.0 : 27371503 |
| E-Number (Finland): | 2712501 |
| E-Number (Sweden): | 3860723 |
