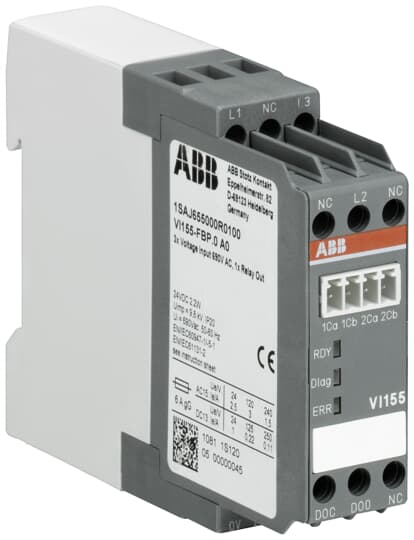

VI155-FBP.0 Voltage-Module for UMC100 Also for use in IT networks, Ue 150-690V AC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | VI155-FBP.0 |
| Product ID: | 1SAJ655000R0100 |
| EAN: | 4016779837194 |
| Catalog Description: | VI155-FBP.0 Voltage-Module for UMC100 Also for use in IT networks, Ue 150-690V AC |
| Long Description: | Voltage expansion module for UMC100. Also for use in IT networks. With this module the UMC100 provides voltage and power based supervision. Available process data: line to line voltage, power, energy, cosphi, THD (total harmonic distortion) |
| |
| Standards: | CAN/CSA C22.2 No.14 |
| IEC/EN 60947-1 | |
| IEC/EN 60947-5-1 | |
| IEC/EN 61131-2 | |
| UL 508 | |
| Product Name: | Universal Motor Controllers Accessories |
| Suitable For: | UMC100-FBP |
| UMC100.3 | |
| Suitable for Product Class: | Universal Motor Controllers |
| Rated Control Supply Voltage (Us): | 24 V DC |
| Input Voltage Type: | AC |
| Power Loss: | Approximately 0.8 W |
| Number of Digital Output Relays: | 1 |
| Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | |
| Analog Inputs: | 3 |
| Terminal Type: | Screw Terminals |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 78 mm |
| Product Net Depth / Length: | 102 mm |
| Product Net Weight: | 0.116 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 22.5 mm |
| Package Level 1 Height: | 78 mm |
| Package Level 1 Depth / Length: | 102 mm |
| Package Level 1 Gross Weight: | 0.12 kg |
| Package Level 1 EAN: | 4016779837194 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| E-Number (Finland): | 3709073 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| ABS Certificate: | 17-HG1610225-PDA |
| ATEX Certificate: | no |
| cULus Certificate: | cULus_20120412_E48139 |
| Declaration of Conformity - CE: | 1SVD981039 |
| DNV Certificate: | DNV_E-13261 |
| DNV GL Certificate: | TAA000015X |
| GL Certificate: | 1SAA962005-0401 |
| Instructions and Manuals: | 2CDC135016M6801 |
| RoHS Information: | 1SVD981039 |
| Regulatory Compliance Mark (RCM): | No |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC135013D0202 |
| Instructions and Manuals: | 2CDC135016M6801 |
| |
| ETIM 6: | EC002613 - Extension module for motor management device |
| ETIM 7: | EC002613 - Extension module for motor management device |
| ETIM 8: | EC002613 - Extension module for motor management device |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / Motor overload switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8536 49 00 |
| eClass: | V11.0 : 27370805 |
| Object Classification Code: | B |
