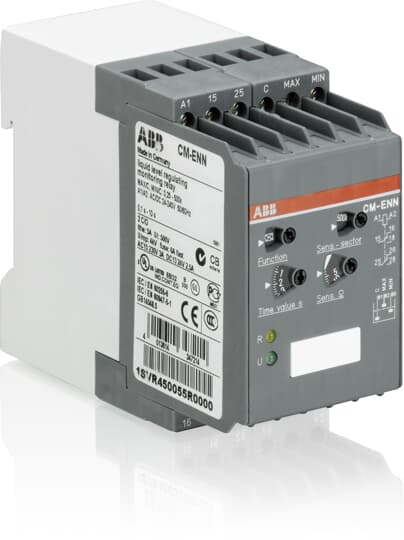

CM-ENN Liquid level relay 2c/o, sensitivity 0.25-500kOhm, 24VAC/DC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-ENN |
| Product ID: | 1SVR450059R0000 |
| EAN: | 4013614347221 |
| Catalog Description: | CM-ENN Liquid level relay 2c/o, sensitivity 0.25-500kOhm, 24VAC/DC |
| Long Description: | Liquid level relay CM-ENN width 45mm, level control of conductive liquids, sensitivity 0.25-500kOhm adjustable, choice of ON- or OFF-delay from 0.1-10s, A1-A2=24VAC, 2 c/o (open-circuit principle) |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364190 |
| Replacement Product ID (NEW): | 1SVR730850R0300 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0209 |
| Instructions and Manuals: | 1SVC450530M0000 |
| |
| Product Net Width: | 45 mm |
| Product Net Height: | 78 mm |
| Product Net Depth / Length: | 100 mm |
| Product Net Weight: | 0.279 kg |
| |
| Function: | Filling or draining monitoring |
| Overflow protection | |
| Dry running protection | |
| Measuring Range: | 0.25 ... 500 kΩ |
| Rated Control Supply Voltage (Us): | 24 V AC |
| Output: | 2 c/o (SPDT) contacts |
| Time Range: | 0.1 ... 10 s, ON- or OFF-delay |
| Terminal Type: | Screw Terminals |
| Standards: | CAN/CSA C22.2 No.14 |
| EN 50178 | |
| IEC/EN 63000 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-3 | |
| UL 508 | |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | CB_DK-8882 |
| CCC Certificate: | CCC_2005010303165477 |
| cUL Certificate: | cUL508_E140448 |
| Declaration of Conformity - CE: | 1SVD981020-0001 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.01825 |
| Environmental Information: | 1SAA981003-2403 |
| GL Certificate: | GL_96663-95HH |
| Instructions and Manuals: | 1SVC450530M0000 |
| RMRS Certificate: | RMRS_12.04009.250 |
| RoHS Information: | 1SVD981020-0001 |
| UL Certificate: | UL508_E140448 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 81 mm |
| Package Level 1 Height: | 106 mm |
| Package Level 1 Depth / Length: | 46 mm |
| Package Level 1 Gross Weight: | 0.305 kg |
| Package Level 1 EAN: | 4013614347221 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC001447 - (Fill) level monitoring relay |
| ETIM 5: | EC001447 - (Fill) level monitoring relay |
| ETIM 6: | EC001447 - (Fill) level monitoring relay |
| ETIM 7: | EC001447 - (Fill) level monitoring relay |
| eClass: | V11.0 : 27371813 |
