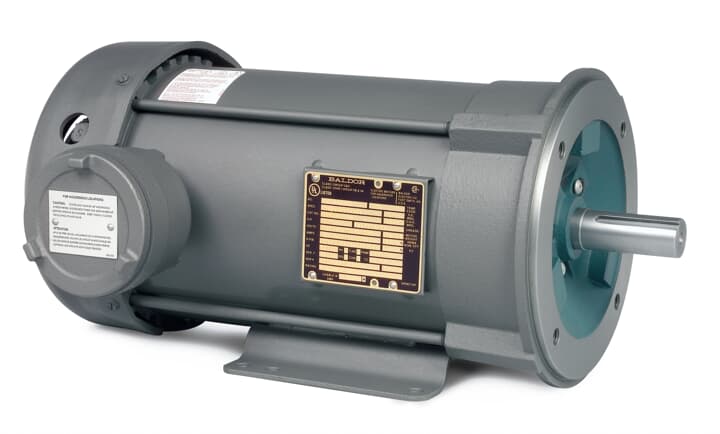

Article: CM7010-I
Article: CM7010-I
0.500 hp, 0.750 hp, 1750//1460 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 56C, F1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Global Commercial Alias: | CM7010-I |
| Product ID: | 7BCM7010-I |
| ABB Type Designation: | .75//.5HP,1750//1460RPM,3PH,60//50H |
| Catalog Description: | 0.500 hp, 0.750 hp, 1750//1460 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 56C, F1 |
| |
| ABB Type Designation: | .75//.5HP,1750//1460RPM,3PH,60//50H |
| Ambient Temperature: | 40 °C |
| Bearing: | 6205 |
| Bearing NDE: | 6203 |
| Brake Present: | No |
| Brand / Label: | Baldor-Reliance |
| Catalog Number: | CM7010-I |
| Certification Agency: | CSA |
| UL | |
| Country of Origin: | United States (US) |
| Customs Tariff Number: | 85015100 |
| Design: | B |
| Dimension Diagram: | 35LYX738 |
| ETIM 7: | EC001851 - Electric motor |
| Efficiency Level: | Not Regulated / Exempt |
| Undefined Efficiency |
| Current | Freq | Power | Speed | Voltage |
|---|---|---|---|---|
| 2.8 A | 60 Hz | .75 Hp | 1750 r/min | 230 V |
| 1.4 A | 60 Hz | .75 Hp | 1750 r/min | 460 V |
| 2.6 A | 50 Hz | .5 Hp | 1460 r/min | 190 V |
| 1.3 A | 50 Hz | .5 Hp | 1460 r/min | 380 V |
Explosion Proof Group Class: CLI GP C,D
Explosion Protection: Explosion-proof
Frame Material: Steel
Frequency (f): 50 Hz
60 Hz
Global Commercial Alias: CM7010-I
Gross Weight: 22.700 kg
Horsepower Rating UL/CSA: 0.500 Hp
0.750 Hp
IDEA Granular Category Code (IGCC): 1325 >> General purpose motor AC
Insulation Class: F
Invoice Description: 0.500 hp, 0.750 hp, 1750//1460 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 56C, F1
Made To Order: No
Marketing Description: 0.500 hp, 0.750 hp, 1750//1460 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 56C, F1
Minimum Order Quantity: 0.000 piece
Motor Base Type: Rigid
Motor Frame Size: 56C
NEMA Design Code: B
Number of Phases: 3
Number of Poles: 4
Number of Speeds: Single Speed
Order Multiple: 0.000 piece
Power Factor: 66 %
Product Name: Explosion Proof Motors
Product Net Length: 14.28 in
Product Net Weight: 22.700 kg
Quote Only: No
Rated Current (In): 2.8 A
1.4 A
2.6 A
1.3 A
Rated Efficiency: 78.5 %
Rated Speed: 1,750 r/min
1,460 r/min
Selling Unit of Measure: piece
Service Factor: 1.15
Service Factor Percentage: 1.15 %
Shaft Diameter: 0.625 in
Standards: NEMA
Starting of Motor: Direct On Line
Stocked At (Warehouses): China
Alabama, United States
Alaska, United States
Temperature Class: T3C
Type of Duty: CONT
UNSPSC: 26101112
Voltage Rating: 460 V
380 V
230 V
190 V
