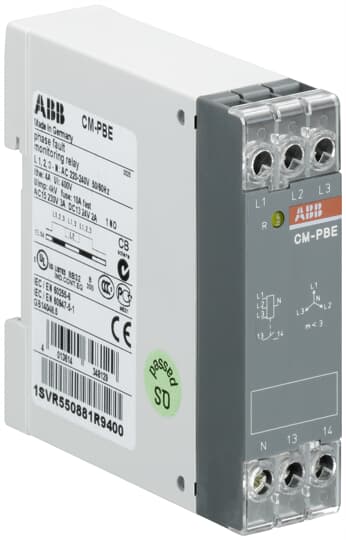

CM-PBE Phase loss monitoring relay 1n/o, L1,2,3-N=220-240VAC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-PBE |
| Product ID: | 1SVR550881R9400 |
| EAN: | 4013614350498 |
| Catalog Description: | CM-PBE Phase loss monitoring relay 1n/o, L1,2,3-N=220-240VAC |
| Long Description: | Phase loss- and undervoltage monitoring relay CM-PBE, width 22.5mm, single- or three phase, with neutral connection, measuring range L1,L2,L3-N=220-240VAC, powered by measuring circuit, 1 n/o (closed circuit principle) |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC112194D0201 |
| Instructions and Manuals: | 1SVC550510M0001 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Depth / Length: | 78.5 mm |
| Product Net Height: | 78 mm |
| Product Net Weight: | 0.066 kg |
| |
| Function: | Phase failure detection |
| Neutral monitoring | |
| Standards: | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-3 | |
| UL 508 | |
| Measuring Range: | (L-L) 380 ... 440 V AC |
| (L-N) 220 ... 240 V AC | |
| Rated Control Supply Voltage (Us): | (L-L) 380 ... 440 V AC |
| (L-N) 220 ... 240 V AC | |
| Rated Frequency (f): | Supply Circuit 50/60 Hz |
| Output: | 1 n/o contact |
| Time Range: | 500 ms start-up delay |
| 150 ms tripping delay | |
| Terminal Type: | Screw Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | CB_DK-8880 |
| CCC Certificate: | CCC_2013010303605960 |
| CQC Certificate: | CQC2013010303605960 |
| cUL Certificate: | cUL508_E140448 |
| Declaration of Conformity - CCC: | 2020980303000202 |
| Declaration of Conformity - CE: | 1SVD981025-00 |
| Declaration of Conformity - UKCA: | 1SVD981025-10 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.03206 |
| Instructions and Manuals: | 1SVC550510M0001 |
| RMRS Certificate: | RMRS_1740020250 |
| RoHS Information: | 1SVD981025-00 |
| UL Certificate: | UL508_E140448 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 24 mm |
| Package Level 1 Height: | 83 mm |
| Package Level 1 Depth / Length: | 25 mm |
| Package Level 1 Gross Weight: | 0.078 kg |
| Package Level 1 EAN: | 4013614350498 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC001441 - Phase monitoring relay |
| ETIM 5: | EC001441 - Phase monitoring relay |
| ETIM 6: | EC001441 - Phase monitoring relay |
| ETIM 7: | EC001441 - Phase monitoring relay |
| eClass: | V11.0 : 27371803 |
| UNSPSC: | 39121536 |
| E-Number (Finland): | 3580842 |
| E-Number (Sweden): | 3860175 |
