General Information | |

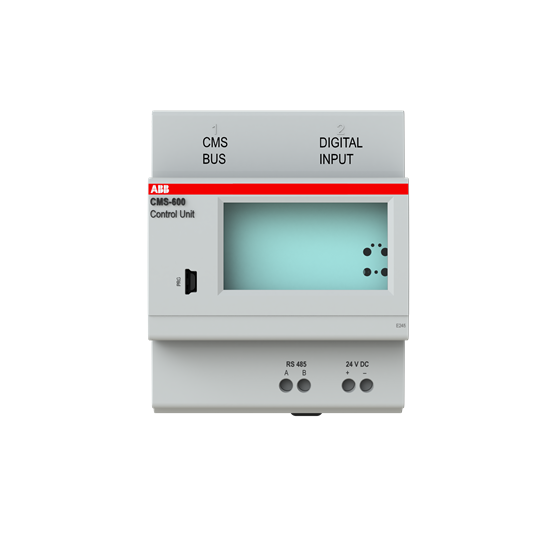

| Extended Product Type: | CMS-600 |
| Product ID: | 2CCA880000R0001 |
| EAN: | 7612271418700 |
| Catalog Description: | CMS-600 Control unit |
| Long Description: | This component is part of the CMS (Circuit Monitoring Systems) familiy. CMS components are made to measure the final circuits (branches) of installations. Each monitoring system consists of a Control Unit and sensors with different measurement ranges and mounting possibilities.Up to 2 x 32 sensors can be connected to each CMS-600 Control Unit. 247 identifiers can be set on the device. Thereby it is possible to aquire thousands of measurement points over one bus line. This means the CMS-600 can be used as a highly-efficient-measurement system, even in very large, extensively networked installations. The user can get access to the data via an integrated touch-display or remotely by a RS485 Modbus interface. |
| |
| Product Name: | Control unit |
| Rated Operational Voltage: | 230 / 400 V AC |
| Frequency (f): | 50 ... 60 Hz |
| Power Consumption (@P | |
| cons | Maximum 10.5 W |
| Accessory Type: | Communication and measuring function |
| Options Provided: | Current measurement in branches |
| Communication: | Modbus RTU |
| |
| Ambient Air Temperature: | Operation -25 ... 70 °C |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Environmental Information: | 2CCC481001D0202 |
| |
| Product Net Width: | 71.8 mm |
| Product Net Height: | 87 mm |
| Product Net Depth / Length: | 64.9 mm |
| Product Net Weight: | 146 g |
| Product Net Length: | 64.9 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 75 mm |
| Package Level 1 Height: | 90 mm |
| Package Level 1 Depth / Length: | 100 mm |
| Package Level 1 Gross Weight: | 200 g |
| Package Level 1 EAN: | 7612271418700 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90303900 |
| E-Number (Switzerland): | 981870103 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCC481017D0201 |
| Environmental Information: | 2CCC481001D0202 |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 2CCC413008D0206 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC481003C0201 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| EPLAN Catalog Tree: | Electrical engineering / Measuring instruments, test devices / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90303900 |
| Object Classification Code: | P |
