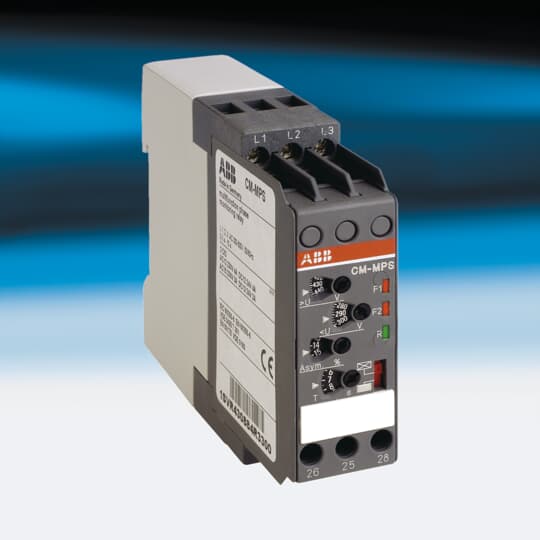

CM-MPS Three-phase monitoring relay 2c/o, 0.1-10s, L1-L2-L3=3x300-500VAC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-MPS |
| Product ID: | 1SVR430884R3300 |
| EAN: | 4013614365126 |
| Catalog Description: | CM-MPS Three-phase monitoring relay 2c/o, 0.1-10s, L1-L2-L3=3x300-500VAC |
| Long Description: | Multifunktion 3 phase monitor CM-MPS, width 22,5mm, monitoring of phase sequence, phase loss, over and undervoltage, unbalance (adjustable 2-15%), measuring range L1-L2-L3=3x300-500VAC 50/60Hz, ON or OFF delay adjustable 0.05-10s, supplied by measuring circuit, 2 c/o (closed circuit principle) |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC112046D0201 |
| Instructions and Manuals: | 1SVC437772M1000 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Depth / Length: | 100 mm |
| Product Net Height: | 78 mm |
| Product Net Weight: | 0.123 kg |
| |
| Function: | Three-phase monitoring |
| Measuring Range: | 300 ... 500 V AC |
| Time Range: | 0.1 ... 10 s |
| |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| |
| CB Certificate: | CB_DK-8881 |
| CCC Certificate: | CCC_2005010303165479 |
| cUL Certificate: | cUL508_E140448 |
| Declaration of Conformity - CE: | 1SAD938500-0134 |
| Environmental Information: | 1SAA981003-2403 |
| GOST Certificate: | GOST_5190261 |
| Instructions and Manuals: | 1SVC437772M1000 |
| RoHS Information: | 1SAA981030-4404 |
| UL Certificate: | UL508_E140448 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 81 mm |
| Package Level 1 Height: | 106 mm |
| Package Level 1 Depth / Length: | 26 mm |
| Package Level 1 Gross Weight: | 0.144 kg |
| Package Level 1 EAN: | 4013614365126 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC001441 - Phase monitoring relay |
| ETIM 5: | EC001441 - Phase monitoring relay |
| ETIM 6: | EC001441 - Phase monitoring relay |
| ETIM 7: | EC001441 - Phase monitoring relay |
| eClass: | V11.0 : 27371803 |
| UNSPSC: | 39121536 |
