Article: CMS-700
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | CMS-700 |
| Product ID: | 2CCA880700R0001 |
| EAN: | 7612271453138 |

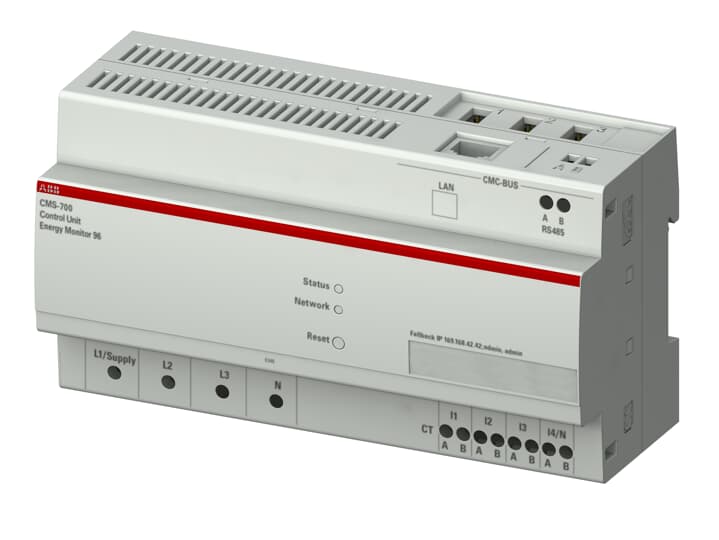

| Catalog Description: | CMS-700 Control Unit Energy Monitor |
| Long Description: | Energymanagement-Device CMS-700 Control Unit Energy Monitor 96 |
| |
| Product Name: | Control Unit Energy Monitor |
| Frequency (f): | 50 ... 60 Hz |
| Power Consumption (@P | |
| cons | Maximum 40 V·A |
| Accuracy: | Active Energy ±2%. Reactive Energy ±2% |
| Accessory Type: | Communication and measuring function |
| Options Provided: | Current, voltage, energy, power measurement in mains and branches |
| Communication: | Modbus RTU, Modbus TCP/IP, SNMP |
| |
| Ambient Air Temperature: | Operation -25 ... 60 °C |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Environmental Information: | 2CCC481001D0202 |
| |
| Product Net Width: | 161.5 mm |
| Product Net Height: | 87 mm |
| Product Net Depth / Length: | 64.9 mm |
| Product Net Weight: | 329 g |
| Product Net Length: | 161 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Height: | 90 mm |
| Package Level 1 Depth / Length: | 185 mm |
| Package Level 1 Gross Weight: | 400 g |
| Package Level 1 EAN: | 7612271453138 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90303900 |
| E-Number (Switzerland): | 981870203 |
| Country of Origin: | Poland (PL) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCC481017D0201 |
| Environmental Information: | 2CCC481001D0202 |
| Instructions and Manuals: | 2CCC481011M0101 |
| RoHS Information: | 2CCC413008D0206 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC481011M0101 |
| Instructions and Manuals: | 2CCC481011M0101 |
| |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| EPLAN Catalog Tree: | Electrical engineering / Measuring instruments, test devices / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90303900 |
| Object Classification Code: | P |
