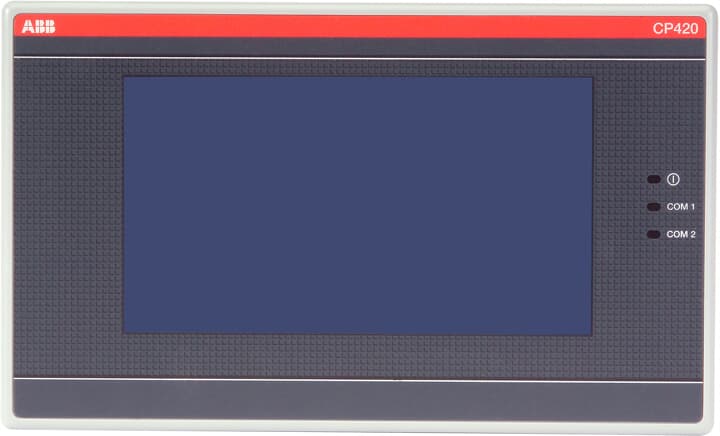

CP420B:CP400, control panel 4.7” touchscreen 16 blue levels
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | CP420B |
| Product ID: | 1SBP260182R1001 |
| ABB Type Designation: | CP420B |
| EAN: | 3471522601827 |
| Catalog Description: | CP420B:CP400, control panel 4.7” touchscreen 16 blue levels |
| Long Description: | CP420 B Control Panel 4.7” Touch screen 16 Blue levels |
| |
| ABB Type Designation: | CP420B |
| Ambient Air Temperature: | Operation 0 ... +50 °C |
| Storage -10 ... +60 °C | |
| Battery Type: | Portable |
| Communication: | Depend on Driver |
| Communication Interface: | no |
| Communication Speed: | 4.8 ... 187.5 kBd |
| Country of Origin: | Taiwan, Province Of China (TW) |
| Customs Tariff Number: | 85381000 |
| Data Sheet, Technical Information: | 1SBC159107L0202 |
| Declaration of Conformity - CE: | 1SBD240577C1000 |
| Display Type: | STN Touch |
| EAN: | 3471522601827 |
| Environmental Information: | 1SBD240182E1000 |
| Fieldbus Interface Type: | Modbus RTUAC500_ModbusASCIIothers (contact us) |
| Fuse Size: | 3.6 x 10_MMTx |
| Fuse Type: | SLEEK.36ESr |
| GSD-file for PROFIBUS Communication: | No |
| Gross Weight: | 0.86 kg |
| Instructions and Manuals: | 1SBC159102M0201 |
| Instructions and Manuals (Part 2): | 1SBC159106M0202 |
| Invoice Description: | CP420B:CP400, control panel 4.7” touchscreen 16 blue levels |
| Made To Order: | No |
| Memory Size User Program: | 4000 kB |
| Memory Type User Program: | 4 MB ROM |
| Minimum Order Quantity: | 1 piece |
| Mounting Position: | 0 to 135 ° |
| Mounting Type: | Front face |
| Mounting on DIN Rail: | No |
| Number of Characters Per Line: | 30 |
| Number of Display Lines: | 16 |
| Number of Function Keys: | 0 |
| Number of LEDs: | 0 |
| Operating Mode: | off-lineon-line |
| Order Multiple: | 1 piece |
| Power Consumption (@P | |
| cons | 12 V·A |
| Power Supply: | 24 V DC |
| Product Main Type: | CP420 |
| Product Name: | Control Panel |
| Product Net Weight: | 0.47 kg |
| Product Type: | PLC-CP400 |
| Profibus: | No |
| Programming Software: | CP400 Soft |
| Quote Only: | No |
| Real-time Clock: | Yes |
| Release Type: | V10.10.10 |
| RoHS Information: | 1SBD340002R0202 |
| Screen Color: | 16 blue levels |
| Screen Resolution: | 240 x 128 pixel |
| Screen Size: | 16:9 wide screen 4.7 in |
| Screen Type: | STN blue, CCFL backlight, touch screen |
| Security: | password protection with 9 user levels |
| Selling Unit of Measure: | piece |
| Serial Port 1 Type: | RS232/RS485 |
| Serial Port 2 Type: | RS422/RS485 |
| Service Life: | 50000 hour |
| Short Description: | CP420 B Control Panel 4.7” Touch screen 16 Blue |
| Short-Circuit Protective Devices: | gG Type Fuses Integrated |
| Software Function: | alarm managementtrendsmacro & laddersub-screen |
| Stocked At (Warehouses): | Menden, Germany |
| Supply Voltage: | 20.4 ... 27.6 V DC |
| UL Certificate: | NRAQ.E240320 |
| USB Port 1 Type: | no |
| USB Port 2 Type: | no |
| Viewing Area Height: | 61 mm |
| Viewing Area Length: | 111 mm |
| cUL Certificate: | 1SAA960000-1709 |
