General Information | |
| Extended Product Type: | CP450T |
| Product ID: | 1SBP260188R1001 |
| ABB Type Designation: | CP450T |
| EAN: | 3471522601889 |
| Catalog Description: | CP450 T Control Panel 10.4” TFT Touch sc |

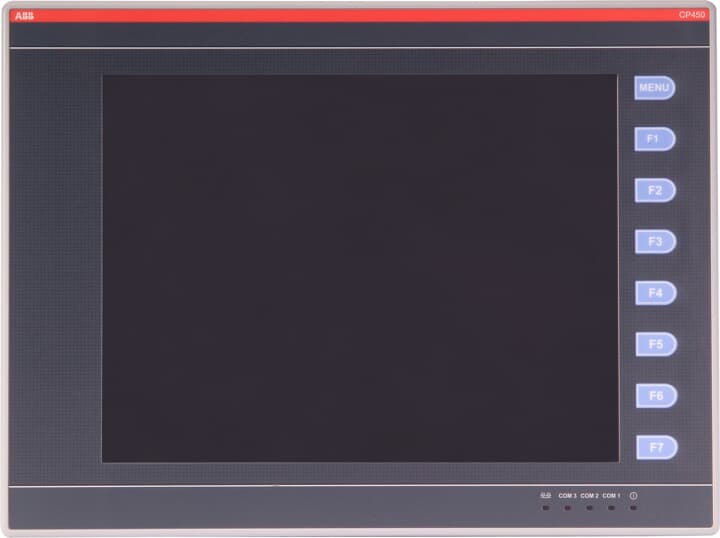

| Long Description: | CP450 T Control Panel 1 menu 7 defined keys 10.4” TFT Touch screen 64K Colors |
| |
| ABB Type Designation: | CP450T |
| Ambient Air Temperature: | Operation 0 ... +50 °C |
| Storage -10 ... +60 °C | |
| Battery Type: | Portable |
| CN8: | 85371091 |
| Communication: | Depend on Driver |
| Communication Interface: | no |
| Communication Speed: | 4.8 ... 187.5 kBd |
| Country of Origin: | Taiwan, Province Of China (TW) |
| Customs Tariff Number: | 85371091 |
| Data Sheet, Technical Information: | 1SBC159107L0202 |
| Declaration of Conformity - CE: | 1SBD240578C1000 |
| Display Type: | TFT Touch + keys |
| EAN: | 3471522601889 |
| Environmental Information: | 1SBD240188E1000 |
| Fieldbus Interface Type: | Modbus RTUAC500_ModbusASCIIothers (contact us) |
| Fuse Size: | 3.6 x 10_MMTx |
| Fuse Type: | SLEEK.36ESr |
| GSD-file for PROFIBUS Communication: | No |
| Gross Weight: | 3.12 kg |
| Instructions and Manuals: | 1SBC159105M0201 |
| Instructions and Manuals (Part 2): | 1SBC159106M0202 |
| Invoice Description: | CP450 T Control Panel 10.4” TFT Touch sc |
| Made To Order: | No |
| Memory Size User Data: | 512 kB |
| Memory Size User Program: | 8000 kB |
| Memory Type User Data: | 512 kilobyte RAM |
| Memory Type User Program: | 8 MB ROM |
| Minimum Order Quantity: | 1 piece |
| Mounting Position: | 0 to 135 ° |
| Mounting Type: | Front face |
| Mounting on DIN Rail: | No |
| Number of Characters Per Line: | 80 |
| Number of Display Lines: | 60 |
| Number of Function Keys: | 7 |
| Number of LEDs: | 0 |
| Operating Mode: | off-lineon-line |
| Order Multiple: | 1 piece |
| Power Consumption (@P | |
| cons | 30 V·A |
| Power Supply: | 24 V DC |
| Product Main Type: | CP450 |
| Product Name: | Control Panel |
| Product Net Height: | 222 mm |
| Product Net Length: | 52 mm |
| Product Net Weight: | 1.9 kg |
| Product Net Width: | 297 mm |
| Product Type: | PLC-CP400 |
| Profibus: | No |
| Programming Software: | CP400 Soft |
| Quote Only: | No |
| Real-time Clock: | Yes |
| Release Type: | V10.10.10 |
| RoHS Information: | 1SBD340002R0202 |
| Screen Color: | 64k colors |
| Screen Resolution: | 640 x 480 pixel |
| Screen Size: | 4:3 screen 10.4 in |
| Screen Type: | TFT color, CCFL backlight, touch screen |
| Security: | password protection with 9 user levels |
| Selling Unit of Measure: | piece |
| Serial Port 1 Type: | RS232/RS485 |
| Serial Port 2 Type: | RS232/RS422/RS485 |
| Serial Port 3 Type: | RS232RS485 |
| Service Life: | 50000 hour |
| Short Description: | CP450 T Control Panel 10.4” TFT Touch screen 256 |
| Short-Circuit Protective Devices: | gG Type Fuses Integrated |
| Software Function: | alarm managementrecipe managementtrendsmacro & laddersub-screen |
| Stocked At (Warehouses): | Menden, Germany |
| Supply Voltage: | 20.4 ... 27.6 V DC |
| UL Certificate: | NRAQ.E240320 |
| UNSPSC: | 32151703 |
| USB Port 1 Type: | 2 Host Ver. 2.0 |
| USB Port 2 Type: | 1 Device Ver. 2.0 |
| Viewing Area Height: | 160.4 mm |
| Viewing Area Length: | 213.2 mm |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| cUL Certificate: | 1SAA960000-1709 |
| eClass: | 27-33-02-01 |
