General Information | |
| Extended Product Type: | CMS-101S8 |
| Product ID: | 2CCA880125R0001 |
| EAN: | 7612271426569 |
| Catalog Description: | CMS-101S8 Sensor |

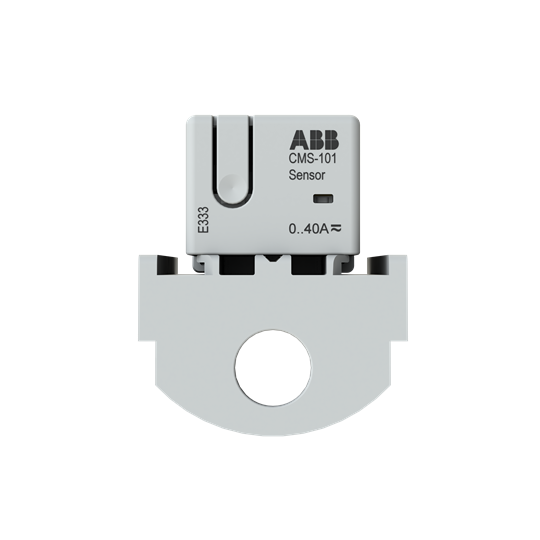

| Long Description: | CMS-101S8 18mm Solid-Core Sensor 40A |
| |
| Product Name: | Sensor |
| Rated Operational Voltage: | 690 V AC |
| 1500 V DC | |
| Frequency (f): | Rated Current 50 Hz |
| Power Consumption (@P | |
| cons | atRatedLoad 0.27 W |
| Accuracy: | Current Accuracy ≤±0,5%F.S. |
| Measuring Range: | Initial Value - Current 0.1 A |
| End Value - Current 40 A | |
| Mounting Type: | Solid core sensors 18 mm for S800 installation devices with cage terminals |
| Output: | Other |
| |
| Ambient Air Temperature: | Operation -25 ... 70 °C |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Environmental Information: | 2CCC481001D0202 |
| |
| Product Net Width: | 26.5 mm |
| Product Net Height: | 31.8 mm |
| Product Net Depth / Length: | 45.5 mm |
| Product Net Weight: | 14 g |
| Product Net Length: | 45.5 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 130 mm |
| Package Level 1 Height: | 75 mm |
| Package Level 1 Depth / Length: | 230 mm |
| Package Level 1 Gross Weight: | 83 g |
| Package Level 1 EAN: | 7612271426569 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90303900 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCC481017D0201 |
| Environmental Information: | 2CCC481001D0202 |
| Instructions and Manuals: | 9AKK106930A6241 |
| RoHS Information: | 2CCC413008D0206 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC481003C0201 |
| Instructions and Manuals: | 9AKK106930A6241 |
| |
| ETIM 6: | EC002475 - Current value transformer |
| ETIM 7: | EC002475 - Current value transformer |
| ETIM 8: | EC002475 - Current value transformer |
| EPLAN Catalog Tree: | Electrical engineering / Measuring instruments, test devices / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90303900 |
| Object Classification Code: | P |
