General Information | |
| Extended Product Type: | DB80 |
| Product ID: | 1SAZ301110R0001 |
| EAN: | 4013614237751 |

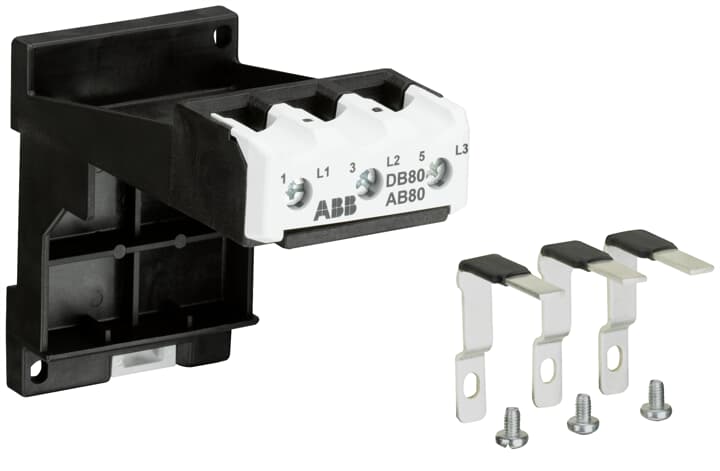

| Catalog Description: | DB80 Single Mounting Kit |
| Long Description: | DB80 Single mounting kit |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100173C0201 |
| Instructions and Manuals: | 2CDC106013M6802 |
| Dimension Diagram: | 1SAZ300405F0001 |
| |
| Product Net Width: | 60 mm |
| Product Net Height: | 92 mm |
| Product Net Depth / Length: | 117 mm |
| Product Net Weight: | 0.155 kg |
| |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Rated Operational Current AC-3 (Ie): | 80 A |
| Rated Frequency (f): | Main Circuit 50 Hz |
| Main Circuit 60 Hz | |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Number of Poles: | 3 |
| Pollution Degree: | 3 |
| Suitable For: | TA42DU |
| TA80DU | |
| TA75DU | |
| TA75-M | |
| Standards: | CSA 22.2 No. 14 |
| IEC/EN 60947-1 | |
| IEC/EN 60947-4-1 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 80 A |
| |
| Ambient Air Temperature: | Operation -25 ... +55 °C |
| Storage -40 ... +70 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| ABS Certificate: | No Certificate Needed |
| cUL Certificate: | cUL_E48139 |
| Declaration of Conformity - CE: | 1SAD938518-0043 |
| DNV Certificate: | No Certificate Needed |
| GL Certificate: | No Certificate Needed |
| Instructions and Manuals: | 2CDC106013M6802 |
| LR Certificate: | No Certificate Needed |
| RINA Certificate: | No Certificate Needed |
| RMRS Certificate: | No Certificate Needed |
| RoHS Information: | 1SAD938517-0043 |
| UL Certificate: | UL_E48139 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 105 mm |
| Package Level 1 Height: | 90 mm |
| Package Level 1 Depth / Length: | 125 mm |
| Package Level 1 Gross Weight: | 0.195 kg |
| Package Level 1 EAN: | 4013614237751 |
| Package Level 2 Units: | 16 piece |
| Package Level 2 Width: | 280 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Gross Weight: | 8.786 kg |
| Package Level 2 EAN: | 4013614493713 |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| eClass: | V11.0 : 27371392 |
| E-Number (Finland): | 3850487 |
