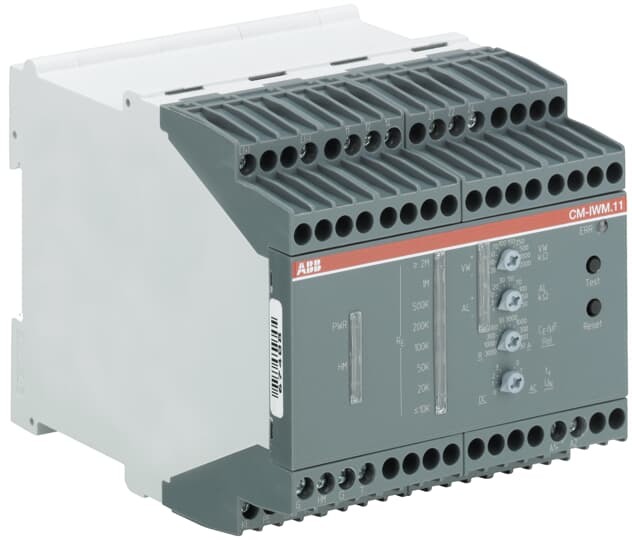

CM-IWM.11 Insulation monitoring relay 2c/o, 1-250kOhm,0.02-20MOhm, 24VDC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-IWM.11 |
| Product ID: | 1SVR470670R1100 |
| EAN: | 4013614515323 |
| Catalog Description: | CM-IWM.11 Insulation monitoring relay 2c/o, 1-250kOhm,0.02-20MOhm, 24VDC |
| Long Description: | CM-IWM.11 Insulation monitoring relay 2c/o, 1-250kOhm,0.02-20MOhm, 24VDC System leakage capacitance 3000 µF |
| |
| EAN: | 4013614515323 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 170 mm |
| Package Level 1 Height: | 145 mm |
| Package Level 1 Depth / Length: | 126 mm |
| Package Level 1 Gross Weight: | 0.62 kg |
| Package Level 1 EAN: | 4013614515323 |
| |
| Product Net Width: | 90 mm |
| Product Net Depth / Length: | 121 mm |
| Product Net Height: | 90 mm |
| Product Net Weight: | 0.5 kg |
| |
| Function: | Unearthed mixed AC / DC systems |
| Up to 1500 V DC | |
| Up to 1100 V AC | |
| Unearthed AC systems | |
| Unearthed DC systems | |
| Unearthed AC and DC systens | |
| Measuring Range: | 20 ... 2000kOhm |
| Rated Control Supply Voltage (Us): | 24 V DC |
| Output: | 2 c/o (SPDT) contacts |
| System Leakage Capacitance (CE): | 3000 µF |
| Terminal Type: | Screw Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Data Sheet, Technical Information: | 2CDC112243D0201 |
| Declaration of Conformity - CE: | 1SVD981048-0002 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.03204 |
| Instructions and Manuals: | 1SVC470510M0000 |
| RoHS Information: | 1SVD981048-0002 |
| |
| ETIM 5: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 6: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 7: | EC001444 - Insulation and earth fault monitoring relay |
| eClass: | V11.0 : 27371807 |
| E-Number (Finland): | 2712549 |
